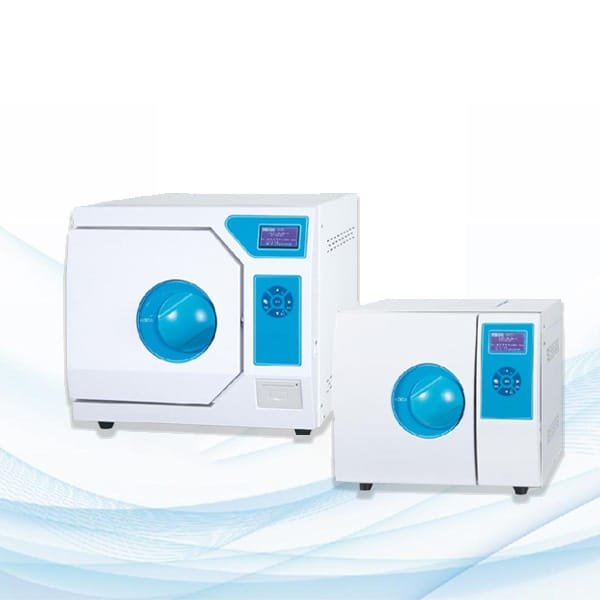

Table Top Steam Sterilizer Autoclave

Table Top Steam Sterilizer Autoclave-B Series Table Top Steam Sterilizer(Automatic door)

Working pressure	0.245Mpa	Design temperature	144℃
Vacuum	-0.086Mpa	Working Temperature	105~138℃
Water Pressure	0.1~0.2Mpa	Temperature Equilibrium	<+2.0℃
External Steam Pressure	0.3~0.7Mpa	Compressed air pressure	0.4~0.7Mpa
Design pressure	-0.1~0.3Mpa	Power voltage	Three-phase five-wire AC 380V 50Hz

☆ Automatic door switch
☆ Automatic water
☆ Quality stainless steel innertank,sealed cover
☆ Micro computer control
☆ Safety interlocking device
☆ With BD test, HELIX test, Vacuum test.
☆ LED display and inductive operation
☆ Equipped with standard test interface
☆ European CLASS B standard.
☆ With automatic protection function:overtemperature protection, over pressure protection, low water level protection, anti dry burning, safety door lock.
☆ Three times per-vacuum
☆ Buzzer reminder after sterilization, automatic stop
☆ Automatic discharge of cold air, automatic steam exhaust after sterilization
☆ Built-in steam generator to provide saturated steam quickly
☆ With built-in printer, USB function and U disk

Model	DGT-18B	DGT-23B	DGT-45B
Volume	18L	23L	45L
Power	2kW	2kW	2.5kW
Voltage	110V/220V，60Hz/50Hz	110V/220V，60Hz/50Hz	110V/220V，60Hz/50Hz
Design pressure	0.25Mpa	0.25Mpa	0.25Mpa
Design temperature	139℃	139℃	139℃
Rated working pressure	0.22Mpa	0.22Mpa	0.22Mpa
Rated working temperature	134 ℃	134 ℃	134 ℃
Chamber volume	⊘0250×370	⊘250x470	⊘316x615
Outer dimension	620×505x450	505×710x450	657×870×575
Packing size(LWH)	670×560×510	760×560×510	980×750×630
Gross/net weight	62/53KG	65/58KG	142/105KG

Working pressure	0.245Mpa	Design temperature	144℃
Vacuum	-0.086Mpa	Working Temperature	105~138℃
Water Pressure	0.1~0.2Mpa	Temperature Equilibrium	<+2.0℃
External Steam Pressure	0.3~0.7Mpa	Compressed air pressure	0.4~0.7Mpa
Design pressure	-0.1~0.3Mpa	Power voltage	Three-phase five-wire AC 380V 50Hz

☆ Automatic water
☆ Quality stainless steel innertank,sealed cover
☆ Micro computer control
☆ Safety interlocking device
☆ With BD test, HELIX test, Vacuum test.
☆ LED display and inductive operation
☆ Equipped with standard test interface
☆ European CLASS B standard.
☆ With automatic protection function:overtemperature protection, over pressure protection, low water level protection, anti dry burning, safety door lock.
☆ Three times per-vacuum
☆ Buzzer reminder after sterilization, automatic stop
☆ Automatic discharge of cold air, automatic steam exhaust after sterilization
☆ Built-in steam generator to provide saturated steam quickly
☆ With built-in printer, USB function and U disk

Model	DGT-8B	DGT-12B	DGT-18B	DGT-23B
Volume	8L	12L	18L	23L
Power	2kW	2kW	2kW	2kW
Voltage	110V/220V，60Hz/50Hz	110V/220V，60Hz/50Hz	110V/220V，60Hz/50Hz	110V/220V，60Hz/50Hz
Design pressure	0.25Mpa	0.25Mpa	0.25Mpa	0.25Mpa
Design temperature	139℃	139℃	139℃	139℃
Rated working pressure	0.22Mpa	0.22Mpa	0.22Mpa	0.22Mpa
Rated working temperature	134 ℃	134 ℃	134 ℃	134 ℃
Chamber volume	⊘170×320	⊘200×355	⊘250×370	⊘250x470
Outer dimension	445×580×400	445×580×400	480×640×450	480×690×450
Packing size(LWH)	650x500x450	650x500x450	720×560×510	760×560×510
Gross/net weight	45/42KG	48/45KG	57/48KG	60/53KG

Working pressure	0.245Mpa	Design temperature	144℃
Vacuum	-0.086Mpa	Working Temperature	105~138℃
Water Pressure	0.1~0.2Mpa	Temperature Equilibrium	<+2.0℃
External Steam Pressure	0.3~0.7Mpa	Compressed air pressure	0.4~0.7Mpa
Design pressure	-0.1~0.3Mpa	Power voltage	Three-phase five-wire AC 380V 50Hz

☆ Automatic water
☆ Quality stainless steel innertank,sealed cover
☆ The microcomputer controls the automatic cycle，121℃ and 134℃ can be set
☆ Safety interlocking device
☆ With BD test, HELIX test, Vacuum test.
☆ LED display and inductive operation
☆ Equipped with standard test interface
☆ European CLASS N standard.
☆ With automatic protection function:overtemperature protection, over pressure protection, low water level protection, anti dry burning, safety door lock.
☆ Three times per-vacuum
☆ Buzzer reminder after sterilization, automatic stop
☆ Automatic discharge of cold air, automatic steam exhaust after sterilization
☆ Built-in steam generator to provide saturated steam quickly
☆ With built-in printer, USB function and U disk

Model	DGT-8A	DGT-12A	DGT-18A	DGT-23A
Volume	8L	12L	18L	23L
Power	2kW	2kW	2kW	2kW
Voltage	110V/220V，60Hz/50Hz	110V/220V，60Hz/50Hz	110V/220V，60Hz/50Hz	110V/220V，60Hz/50Hz
Design pressure	0.25Mpa	0.25Mpa	0.25Mpa	0.25Mpa
Design temperature	139℃	139℃	139℃	139℃
Rated working pressure	0.22Mpa	0.22Mpa	0.22Mpa	0.22Mpa
Rated working temperature	134 ℃	134 ℃	134 ℃	134 ℃
Chamber volume	⊘170×320	⊘200×355	⊘250×370	⊘250x470
Outer dimension	445×580×400	445×580×400	480×640×450	480×690×450
Packing size(LWH)	650x500x450	650x500x450	720×560×510	760×560×510
Gross/net weight	45/42KG	48/45KG	57/48KG	60/53KG
