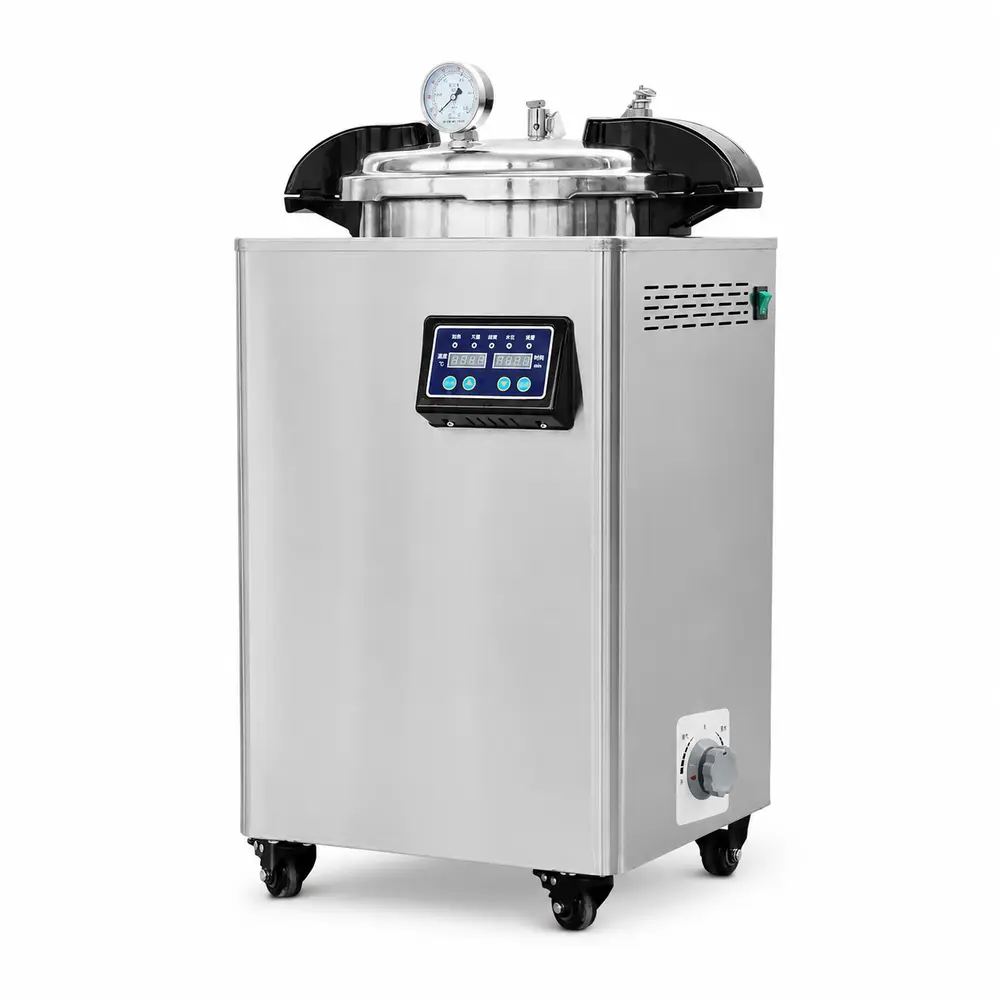

KLS-29KF Portable Autoclave (Quick-Open Automatic)
At a glance: A quick-opening automatic portable steam sterilizer (18–29 L) whose upper/lower handle lid closes with a quick rotation instead of bolts, with adjustable sterilization temperature and time.
- Chamber volumes
- 18–29 L
- Models
- KLS-18K, KLS-24K, KLS-29K
- Certification
- CE · ISO 9001 · ISO 13485
- Manufacturer
- Keling Medical, China (since 1996)
Overview
Traditional portable autoclaves seal with a ring of hand-tightened bolts; the KLS-29KF replaces them with a quick-rotation upper/lower handle closure that seals in seconds. Combined with automatic control — sterilization temperature adjustable up to 130 °C and time up to 99 minutes — it is the fastest and most convenient sterilizer in the portable range.

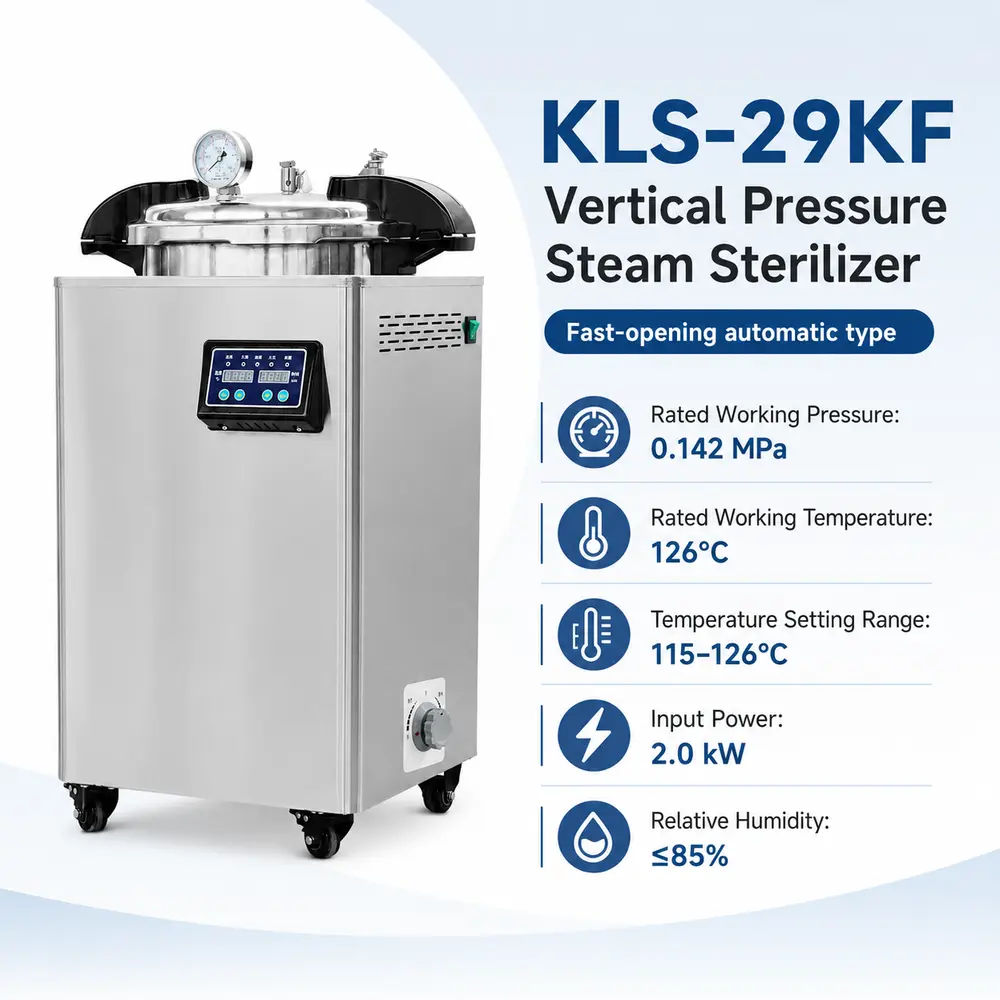

The series is available in nominal 18 L, 24 L and 29 L capacities (KLS-18K / 24K / 29K), all rated 0.142 MPa at 126 °C with 2.0 kW input power. Within the wider KLS designation, A is the regular type, B self-controlled, C coal/electric dual-use, and K this quick-opening automatic type.
Product features
- Maximum working pressure of sterilizer: .142MPa
- Rated operating temperature of sterilizer: 126 °C (can be set within the range of 115 °C to 126 °C)
- Environmental temperature range:+5 °C~+4 °C
- Relative humidity range: not greater than 85%
- Atmospheric pressure range: 7 kPa~1 6kPa
- Use C power supply: (22 ± 22) V, frequency: (5 ± 1) Hz
- The water used in the sterilizer should not affect the sterilization process or damage the sterilizer or sterilized items
Technical parameters
| Technical parameter/Model | Functional type | Volume range L | Rated working pressure MPa | Rated working temperature °C | Input power KW |
|---|---|---|---|---|---|
| KLS-18K | A is a regular type, and the sterilization temperature and time cannot be adjusted; B is a self controlled type, with adjustable sterilization temperature (0-130 °C) and time (0-99min); C is a dual-use type for coal and electricity, and the sterilization temperature and time cannot be adjusted. K is a fast opening automatic type, with adjustable sterilization temperature (0-130 °C) and time (0-99min). A. B and C are handles, bolted together for sealing; K is the upper and lower handle, with quick rotation connection and sealing. | 18±3 | 0.142 | 126 | 2.0 |
| KLS-24K | 24±3 | ||||
| KLS-29K | 29+35 | ||||
Specifications are subject to technical improvement. Confirm final parameters, voltage and options with our sales team before ordering.
Construction & details
Get pricing for the KLS-29KF (Quick-Open Automatic)
Send your required model, voltage and destination port — you will receive a full quotation with packing and shipping details.
