KLL-B Series Vertical Autoclave (Automatic, Digital Display)
At a glance: A vertical pressure steam sterilizer with microcomputer automatic control and digital display, available in 35, 50, 75 and 100 L with stainless-steel chamber and full automatic protection.
- Chamber volumes
- 35–100 L
- Models
- KLL-35B, KLL-50B, KLL-75B, KLL-100B
- Certification
- CE · ISO 9001 · ISO 13485
- Manufacturer
- Keling Medical, China (since 1996)
Overview

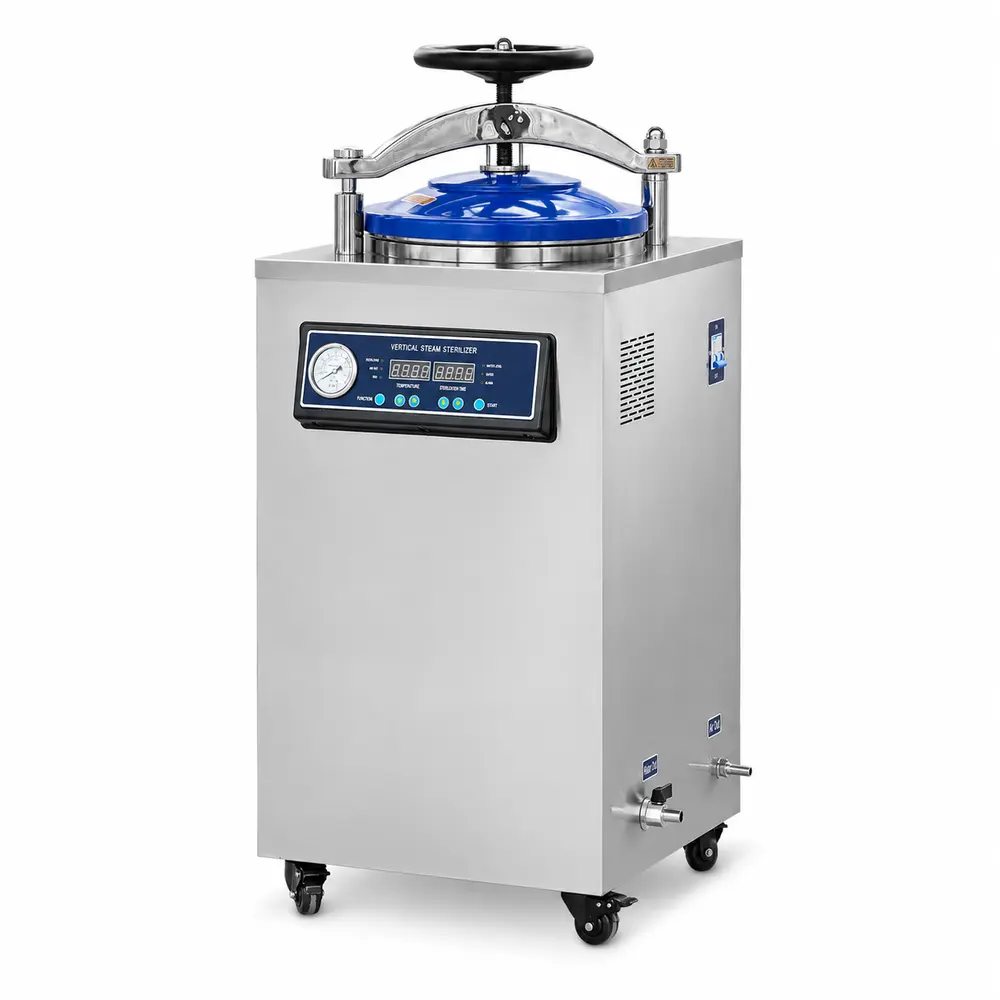

The KLL-B Series is the core model of Keling's vertical autoclave range: a top-loading pressure steam sterilizer with hand-wheel translation opening, microcomputer automatic control and adjustable sterilization parameters shown on a clear digital display. Cold air is discharged automatically before the cycle and steam is exhausted automatically after it, so operation needs minimal training.
Four automatic protections — over-temperature, over-pressure self-relief, low water level and anti-dry heating — plus a safety interlock device guard every cycle. The chamber and inner buckets are stainless steel, a standard test interface is fitted, and an automatic water-intake function is optional.
Product features
- Handwheel translation structure
- High-quality stainless steel material
- Microcomputer automatic control with adjustable sterilization parameters
- Safety interlock device

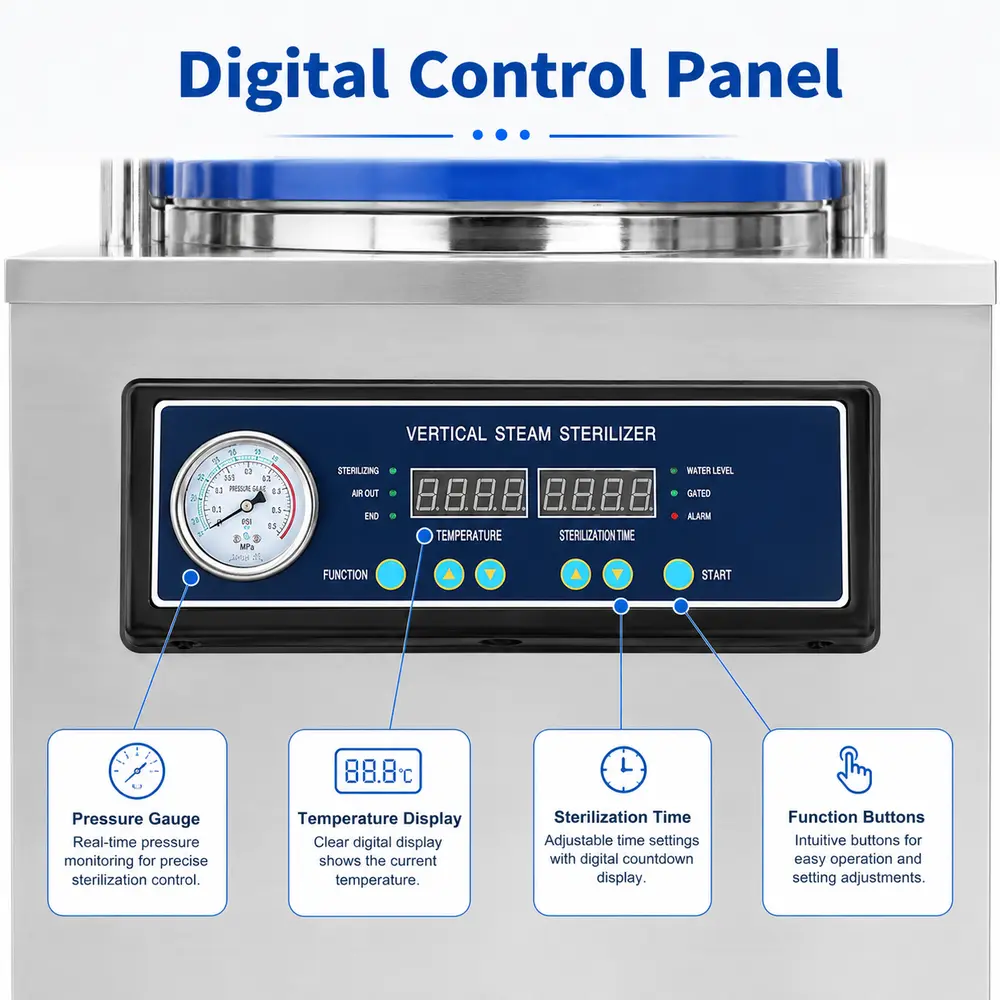

- Digital display and mechanical buttons
- Equipped with a standard test interface
- Self-expanding seal

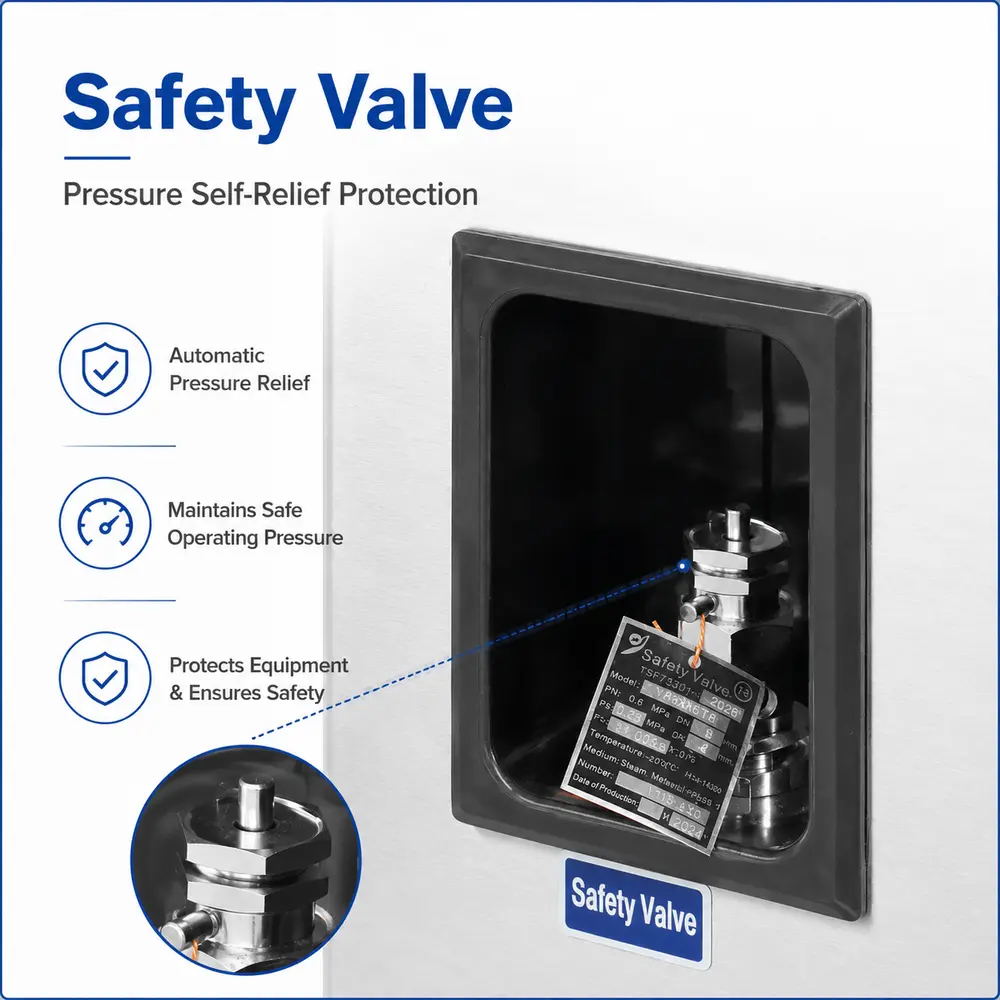

- Automatic protection functions:over-temperature protection,over-pressure self-relief protection,low water level protection,anti-dry heating protection

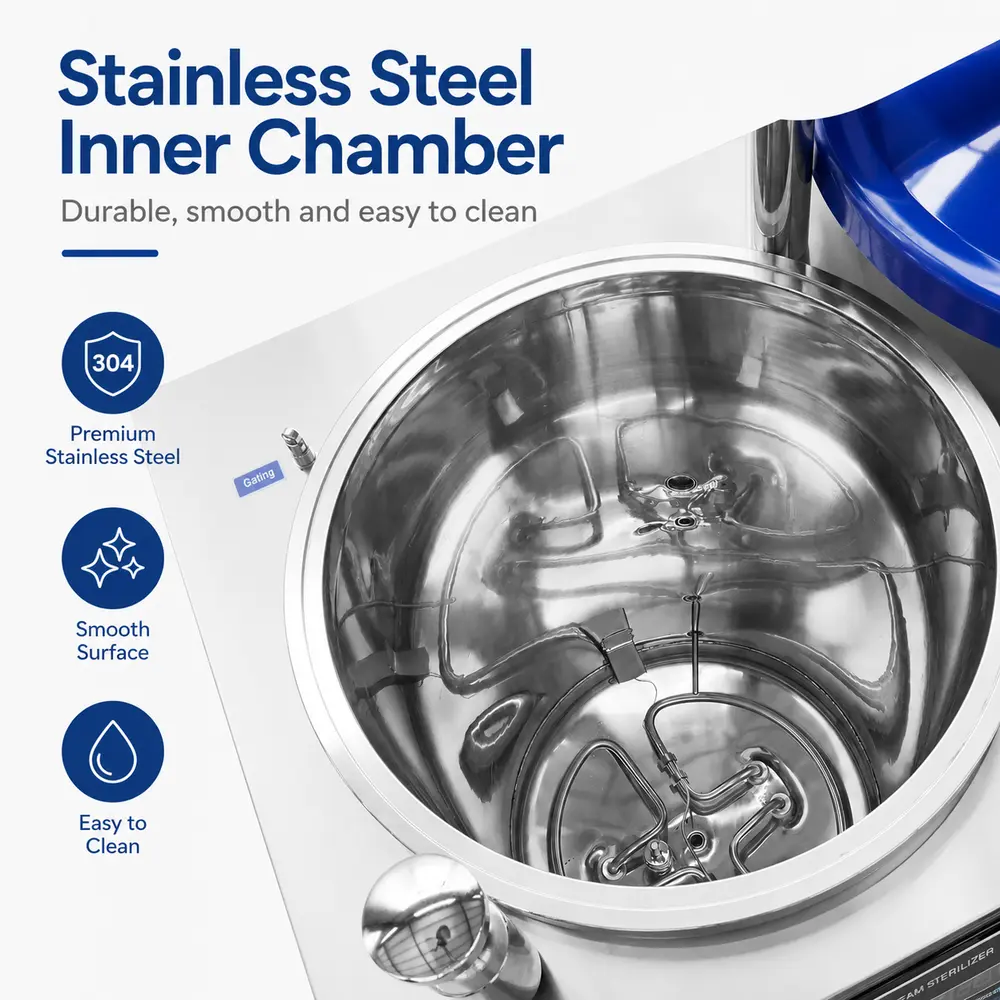

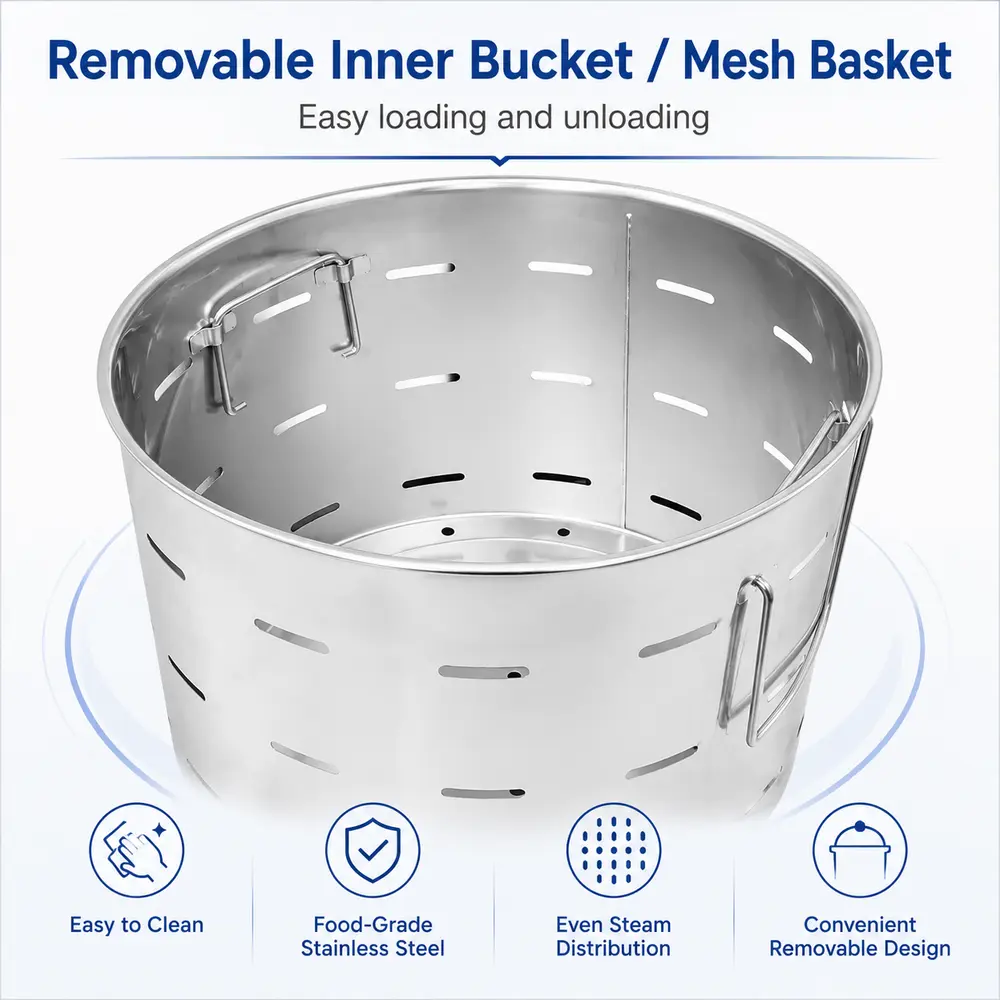

- Stainless steel inner cylinder (or mesh basket)
- Buzzer reminder upon completion of sterilization, with automatic shutdown
- Automatic discharge of cold air and automatic discharge of steam after sterilization
- Automatic water intake function is available as an option
Technical parameters
| Technical Parameters/Model | KLL-35B | KLL-50B | KLL-75B | KLL-100B |
|---|---|---|---|---|
| Volume | 35L | 50L | 75L | 100L |
| Power | 2.5KW | 3.5KW | 4.5KW | 4.5KW |
| Voltage | AC 110V 60HZ or AC 220V 50HZ | |||
| Design pressure | 0.25MPa | |||
| Design temperature | 139 °C | |||
| Rated working pressure | 0.22MPa | |||
| Rated working temperature | 134 °C | |||
| Sterilization temperature range | 116~134 °C | |||
| Sterilization time range | 4~ 120 min | |||
| Drying time range | ||||
| Chamber Size(mm) | Φ300x450 | Φ350x515 | Φ400x585 | Φ450x615 |
| Bucket dimension(mm) | Φ275x395 | Φ325x235x2 | Φ375x265x2 | Φ425x275x2 |
| (Optional)basket dimension(mm) | Φ270x380 | Φ320x220x2 | Φ370x250x2 | Φ420x265x2 |
| Outer dimension(mm) | 476x473x990 | 544x536x1100 | 586x576x1210 | 620x610x1275 |
| Packing size(LxWxH)(mm) | 520x560x1120 | 580x630x1230 | 670x620x1350 | 690x650x1410 |
| Gross/net weight(kg) | 74/62kg | 103/80kg | 115/90kg | 134/106kg |
Specifications are subject to technical improvement. Confirm final parameters, voltage and options with our sales team before ordering.
Construction & details
Get pricing for the KLL-B (Digital Display)
Send your required model, voltage and destination port — you will receive a full quotation with packing and shipping details.
