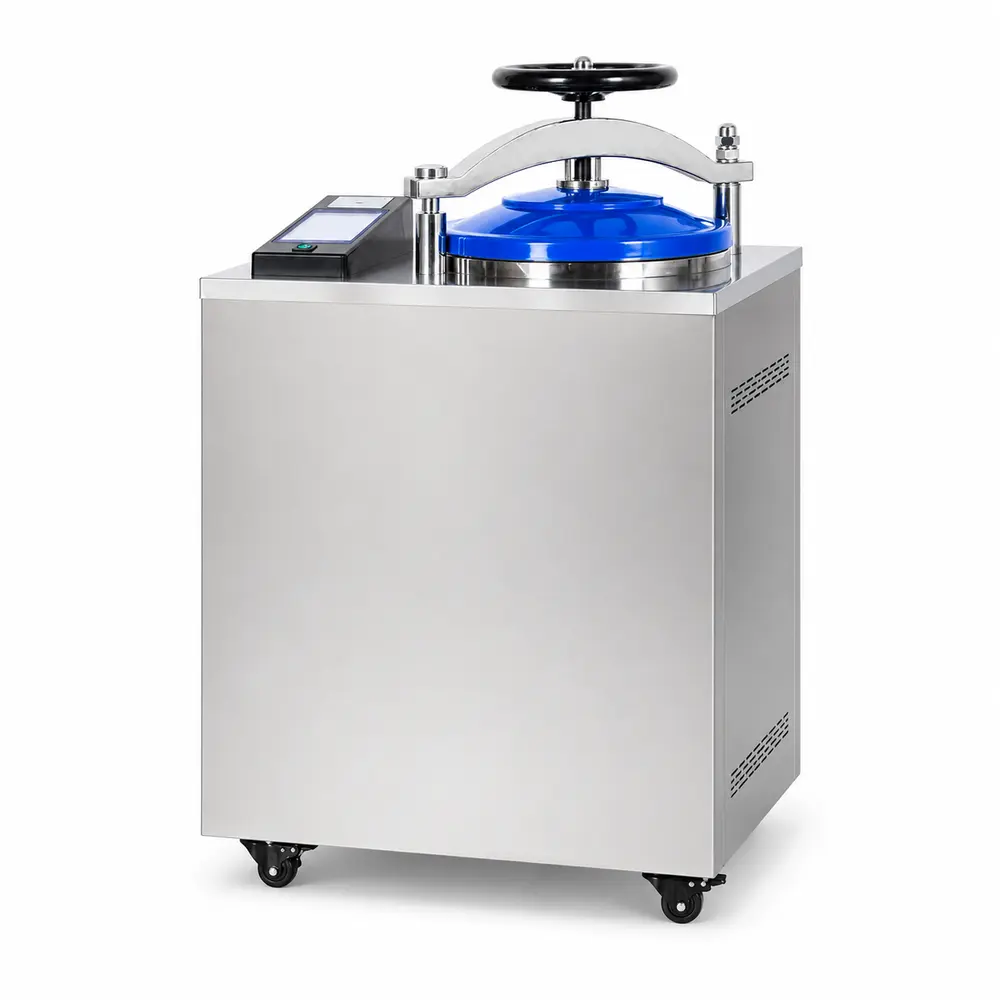

KLL-M Series Vertical Autoclave (Pulsating Vacuum)
At a glance: A vertical pressure steam sterilizer with three-time pulsating vacuum air removal, LCD touch screen, built-in printer and evaporator, drying function and automatic water intake, in 35–100 L sizes.
- Chamber volumes
- 35–100 L
- Models
- KLL-35M, KLL-50M, KLL-75M, KLL-100M
- Certification
- CE · ISO 9001 · ISO 13485
- Manufacturer
- Keling Medical, China (since 1996)
Overview
For porous, wrapped or hollow loads where trapped air defeats gravity sterilization, the KLL-M Series applies three pulsating vacuum cycles to strip air from the load before steam exposure — the same principle used in hospital-grade Class B sterilizers. An LCD touch screen, built-in printer and built-in evaporator make it a complete, self-documenting sterilization station.
The series keeps the practical KLL features: hand-wheel translation opening, stainless-steel chamber and buckets, drying function, automatic water intake, automatic cold-air/steam discharge and four-fold automatic protection with a safety interlock.
Product features
- High-quality sealing ring with self-expanding sealing
- Equipped with a drying function
- Automatic water intake
- Stainless steel inner cylinder (or mesh basket)
- Automatic protection functions: over-temperature protection,over-pressure protection,low water level protection,anti-dry heating protection
- Built-in evaporator
- Buzzer reminder upon completion of sterilization, with automatic shutdown
- Automatic discharge of cold air, automatic discharge of steam after sterilization, and built-in printer
- Handwheel translation structure
- Three-time pulsating vacuum
- High-quality stainless steel material
- Microcomputer automatic control with adjustable sterilization parameters
- Safety interlock device
- LCD display with touch screen
- Equipped with standard test interface

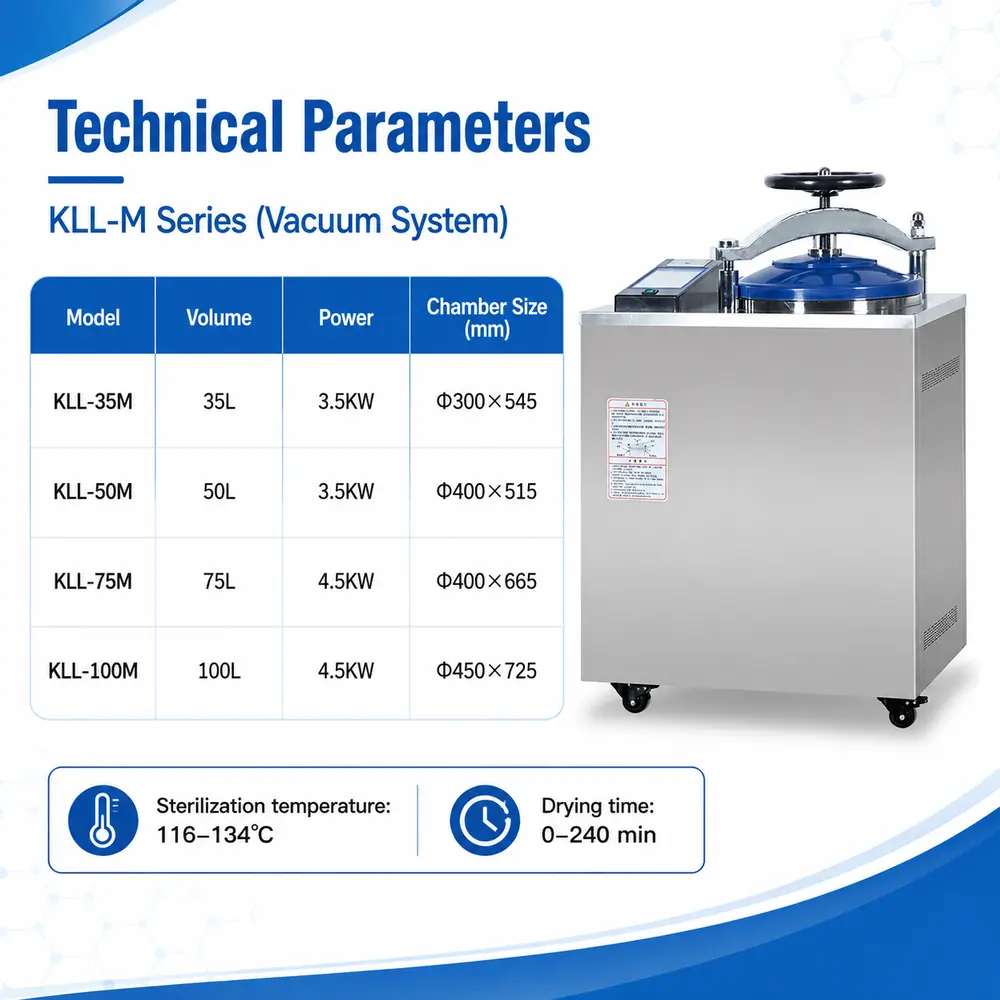

Technical parameters
| Technical Parameters/Model | KLL-35M | KLL-50M | KLL-75M | KLL-100M |
|---|---|---|---|---|
| Volume | 35L | 50L | 75L | 100L |
| Power | 3.5KW | 3.5KW | 4.5KW | 4.5KW |
| Voltage | AC 110V 60HZ or AC 220V 50HZ | |||

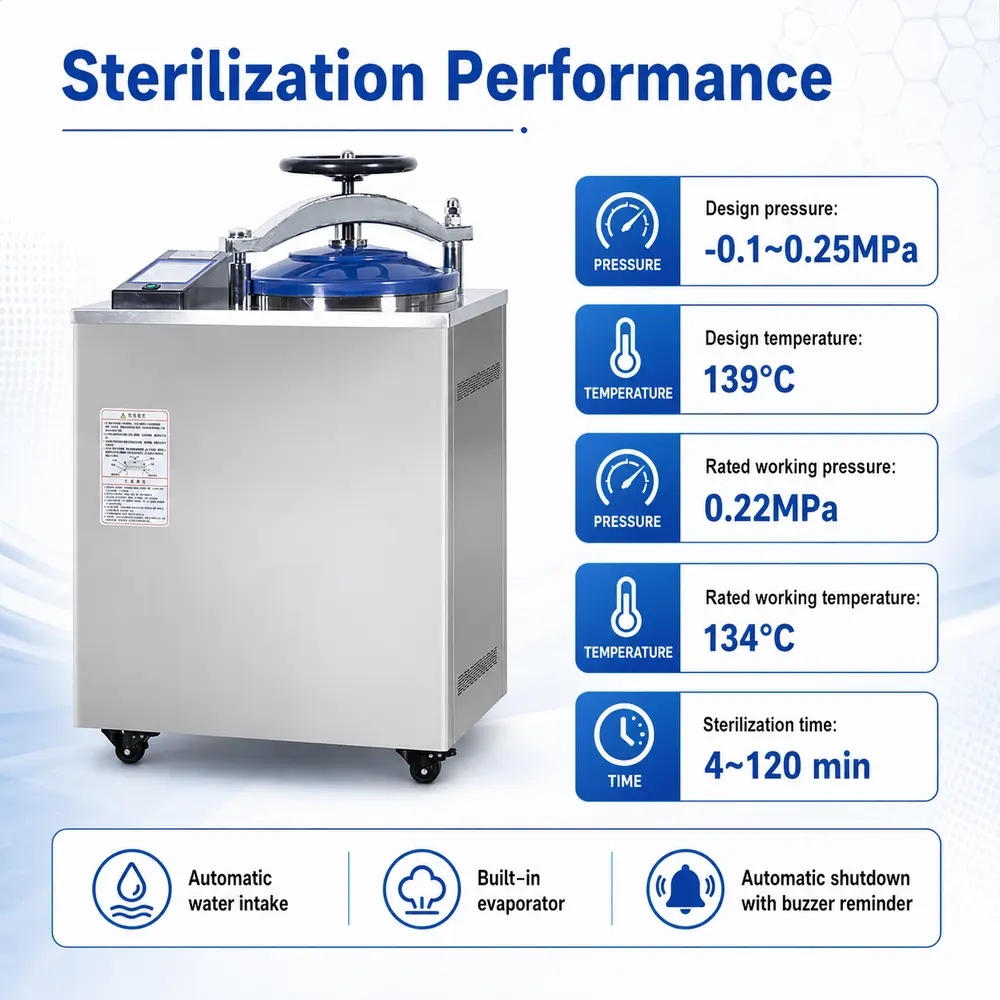

| Design pressure | -0.1~0.25MPa | |||
| Design temperature | 139 °C | |||
| Rated working pressure | 0.22MPa | |||
| Rated working temperature | 134 °C | |||
| Sterilization temperature range | 116~134 °C | |||
| Sterilization time range | 4~ 120 min | |||
| Drying time range | 0~240min | |||
| Chamber Size(mm) | Φ300x545 | Φ400x515 | Φ400x665 | Φ450x725 |
| Bucket dimension(mm) | Φ275x395 | Φ375x235x2 | Φ375x265x2 | Φ425x275x2 |
| (Optional)basket dimension(mm) | Φ270x380 | Φ370x220x2 | Φ370x250x2 | Φ420x265x2 |
| Outer dimension(mm) | 430x610x1050 | 540x761x1180 | 540x761x1180 | 790x570x1265 |
| Packing size(LxWxH)(mm) | 670x520x1180 | 840x610x1310 | 840x610x1310 | 870x650x1380 |
| Gross/net weight(kg) | 86/80kg | 143/114kg | 150/121kg | 180/146kg |
Specifications are subject to technical improvement. Confirm final parameters, voltage and options with our sales team before ordering.

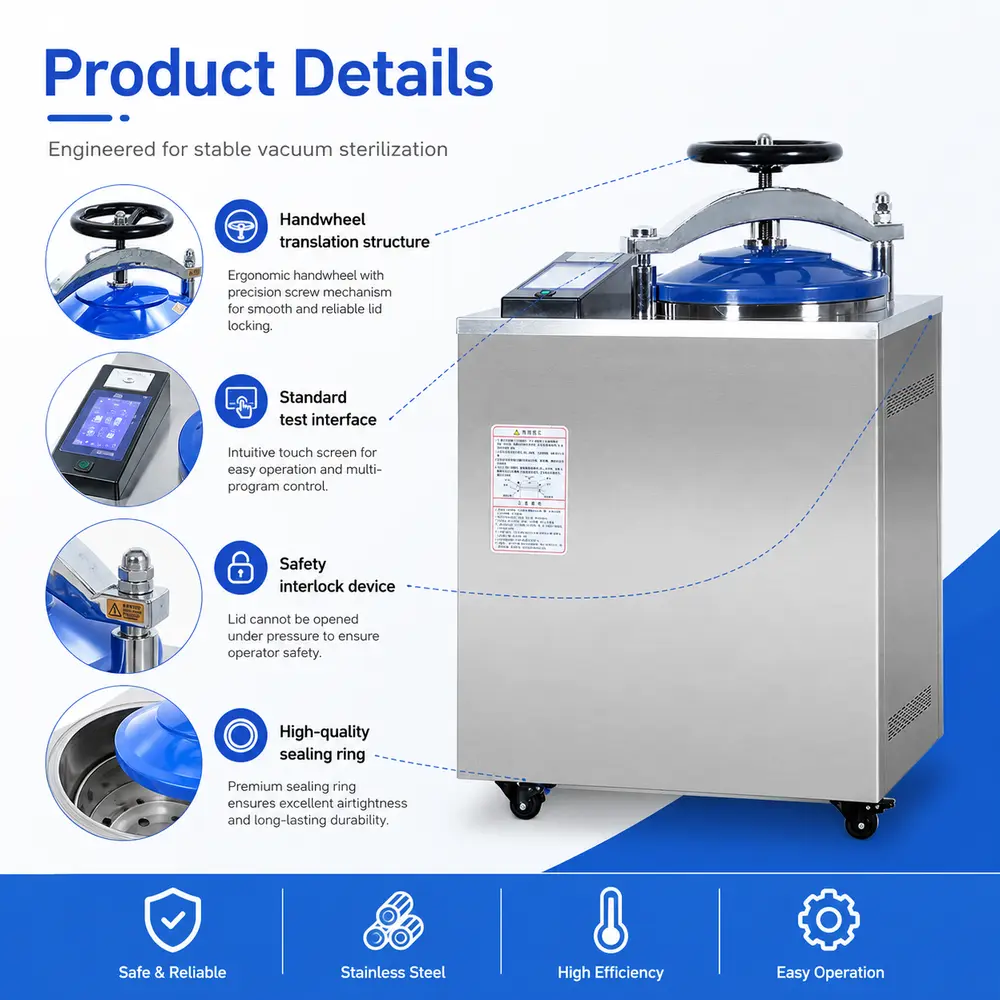

Construction & details
