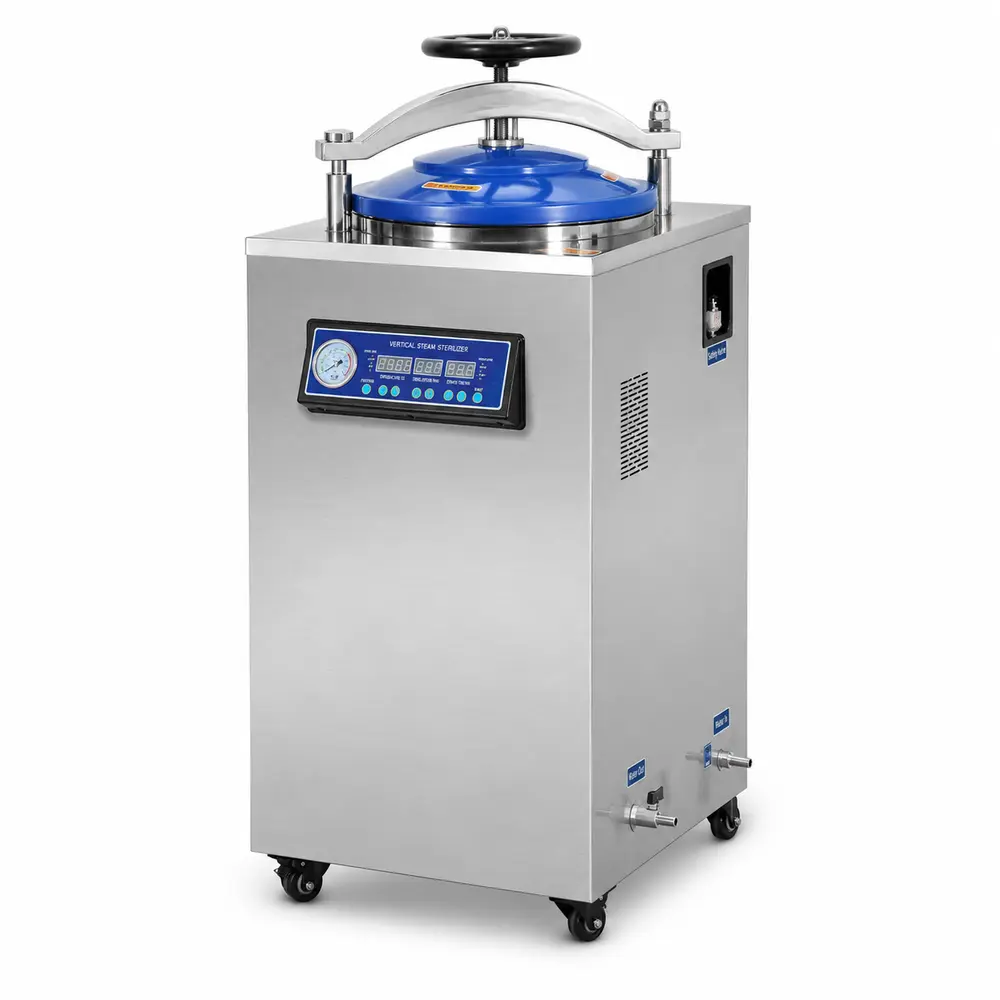

KLL-G Series Vertical Autoclave (Automatic with Drying)
At a glance: A vertical pressure steam sterilizer with integrated drying (0–240 min), microcomputer control with touch buttons, 35–100 L stainless-steel chamber and optional external printer.
- Chamber volumes
- 35–100 L
- Models
- KLL-35G, KLL-50G, KLL-75G, KLL-100G
- Certification
- CE · ISO 9001 · ISO 13485
- Manufacturer
- Keling Medical, China (since 1996)
Overview
The KLL-G Series adds an integrated drying stage to the proven KLL vertical platform. After sterilization the unit can dry wrapped instruments and textiles for up to 240 minutes, so loads leave the chamber ready for storage rather than damp. Parameters are freely settable through microcomputer control with touch buttons.
Like all KLL models it includes the full protection suite — over-temperature, over-pressure, low-water and anti-dry-heating — automatic cold-air and steam discharge, a standard test interface and a self-expanding door seal. An external printer for cycle documentation and automatic water intake are available as options.

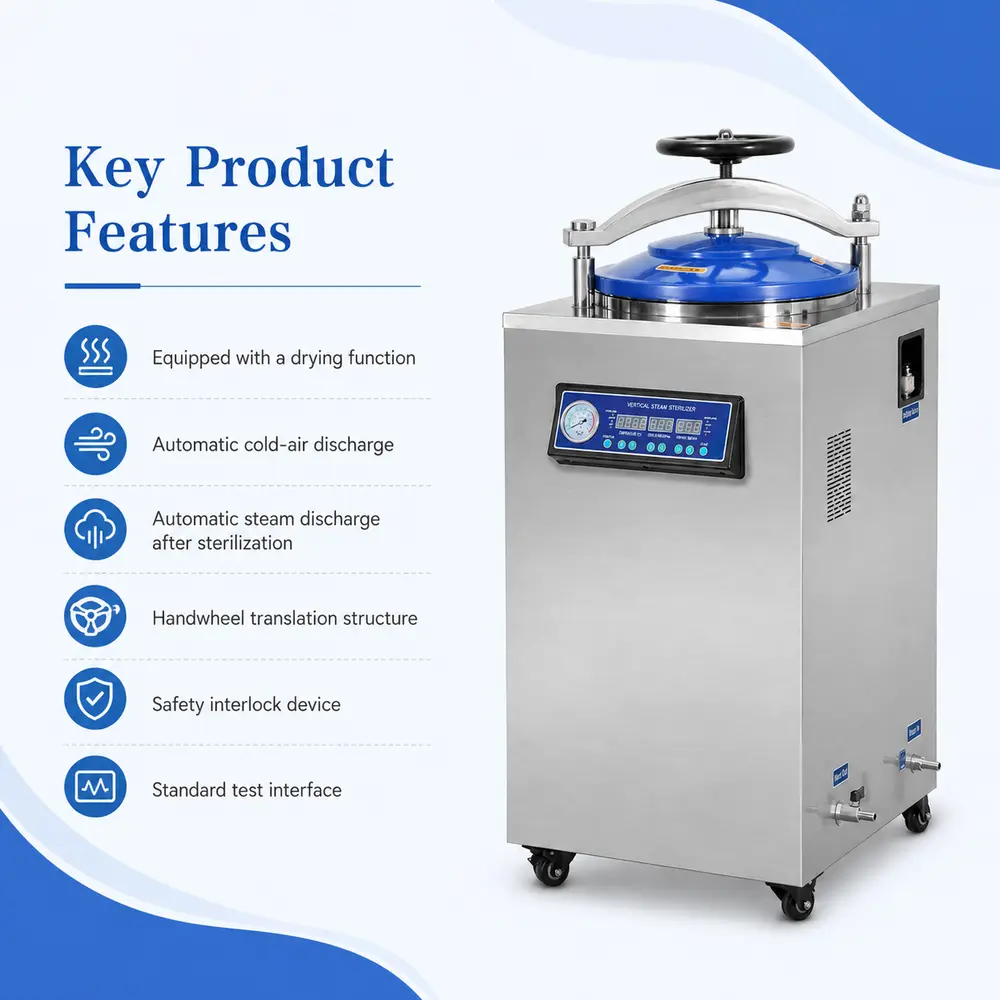

Product features
- Equipped with a drying function
- Buzzer reminder upon completion of sterilization, with automatic shutdown
- Automatic protection functions: over-temperature protection,over-pressure protection,low water level protection,anti-dry heating protection
- Stainless steel inner cylinder (or mesh basket)
- Automatic discharge of cold air and automatic discharge of steam after sterilization

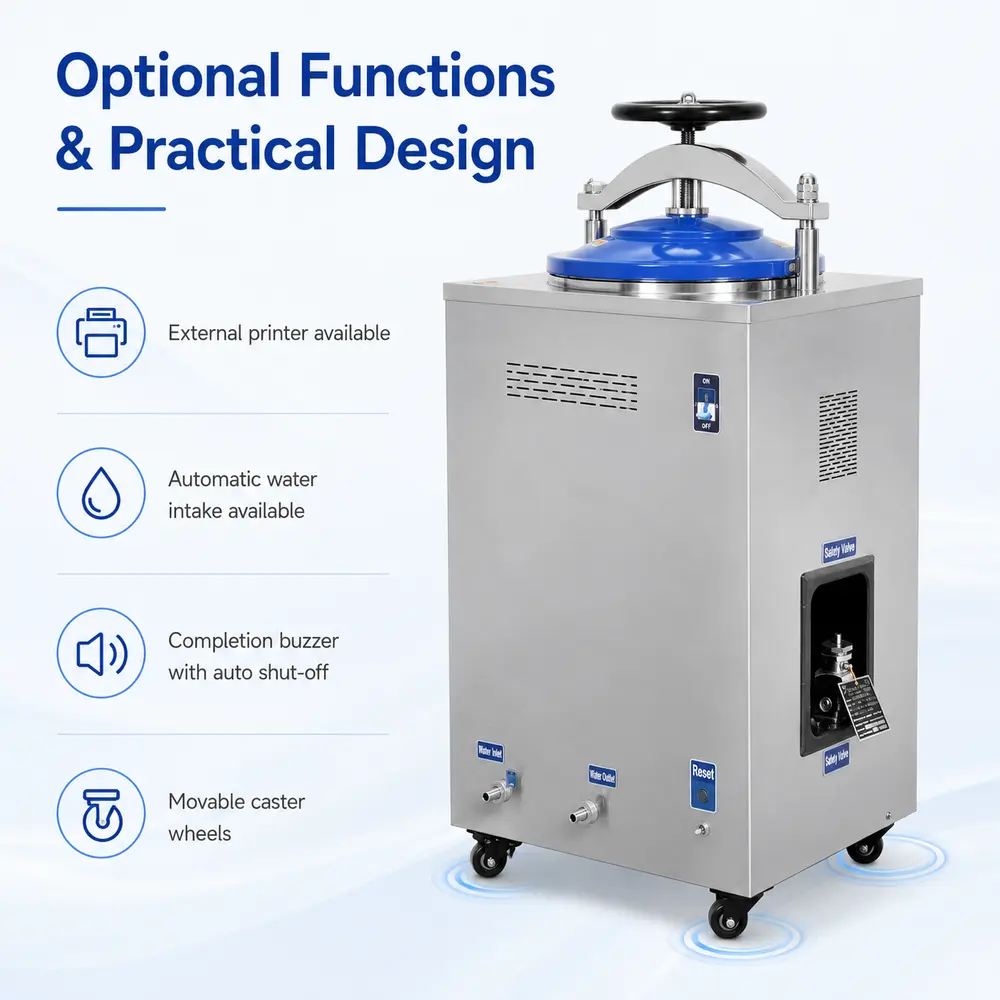

- External printer is available as an option
- An automatic water intake function is available as an option
- Handwheel translation structure
- High-quality stainless steel material
- Microcomputer automatic control with arbitrarily settable sterilization parameters
- Safety interlock device
- Digital display and touch buttons
- Equipped with a standard test interface
- Self-expanding seal

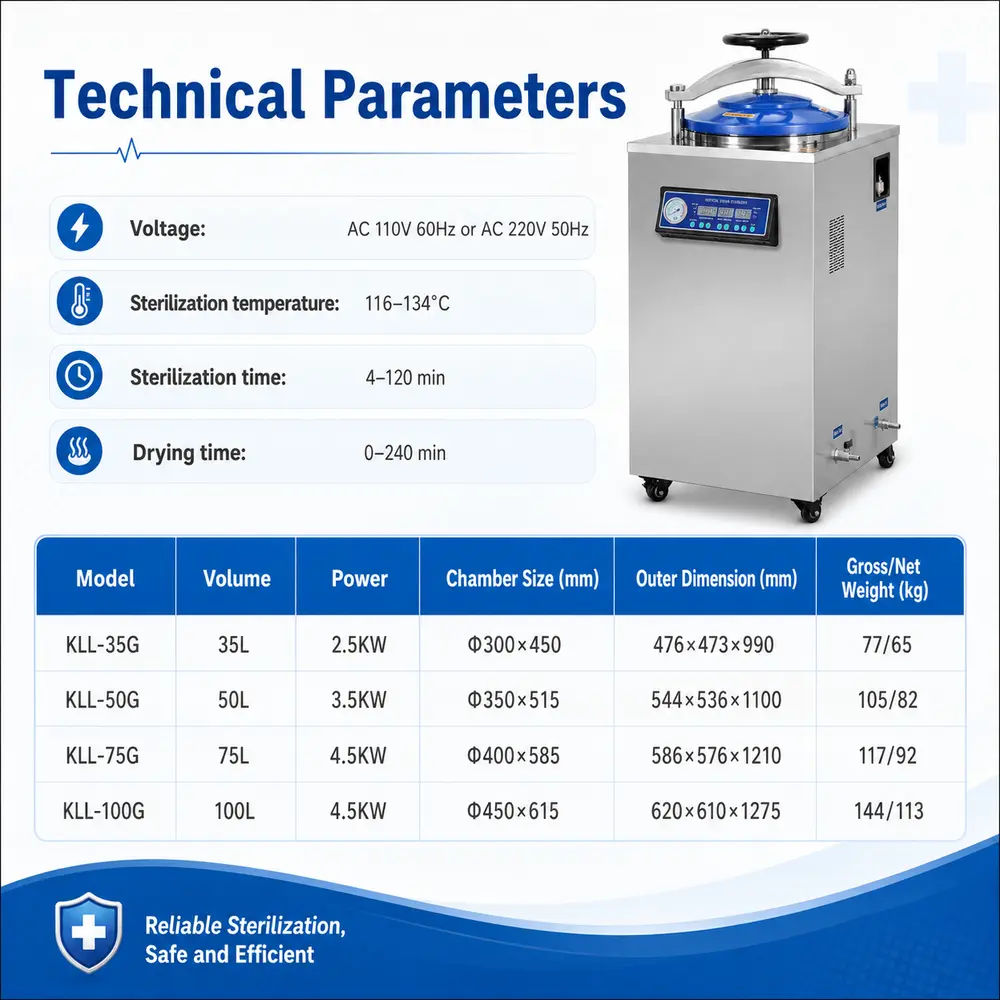

Technical parameters
| Technical Parameters/Model | KLL-35G | KLL-50G | KLL-75G | KLL-100G |
|---|---|---|---|---|
| Volume | 35L | 50L | 75L | 100L |
| Power | 2.5KW | 3.5KW | 4.5KW | 4.5KW |
| Voltage | AC 110V 60HZ or AC 220V 50HZ | |||
| Design pressure | -0.1-0.25MPa | |||
| Design temperature | 139 °C | |||
| Rated working pressure | 0.22MPa | |||
| Rated working temperature | 134 °C | |||
| Sterilization temperature range | 116~134 °C | |||
| Sterilization time range | 4~120 min | |||
| Drying time range | 0~ 240 min | |||
| Chamber Size(mm) | Φ300x450 | Φ350x515 | Φ400x585 | Φ450x615 |
| Bucket dimension(mm) | Φ275x395 | Φ325x235x2 | Φ375x265x2 | Φ425x275x2 |
| (Optional)basket dimension(mm) | Φ270x380 | Φ320x220x2 | Φ370x250x2 | Φ420x265x2 |
| Outer dimension(mm) | 476x473x990 | 544x536x1100 | 586x576x1210 | 620x610x1275 |
| Packing size(LxWxH)(mm) | 520x560x1120 | 580x630x1230 | 670x620x1350 | 690x650x1410 |
| Gross/net weight(kg) | 77/65kg | 105/82kg | 117/92kg | 144/113kg |
Specifications are subject to technical improvement. Confirm final parameters, voltage and options with our sales team before ordering.

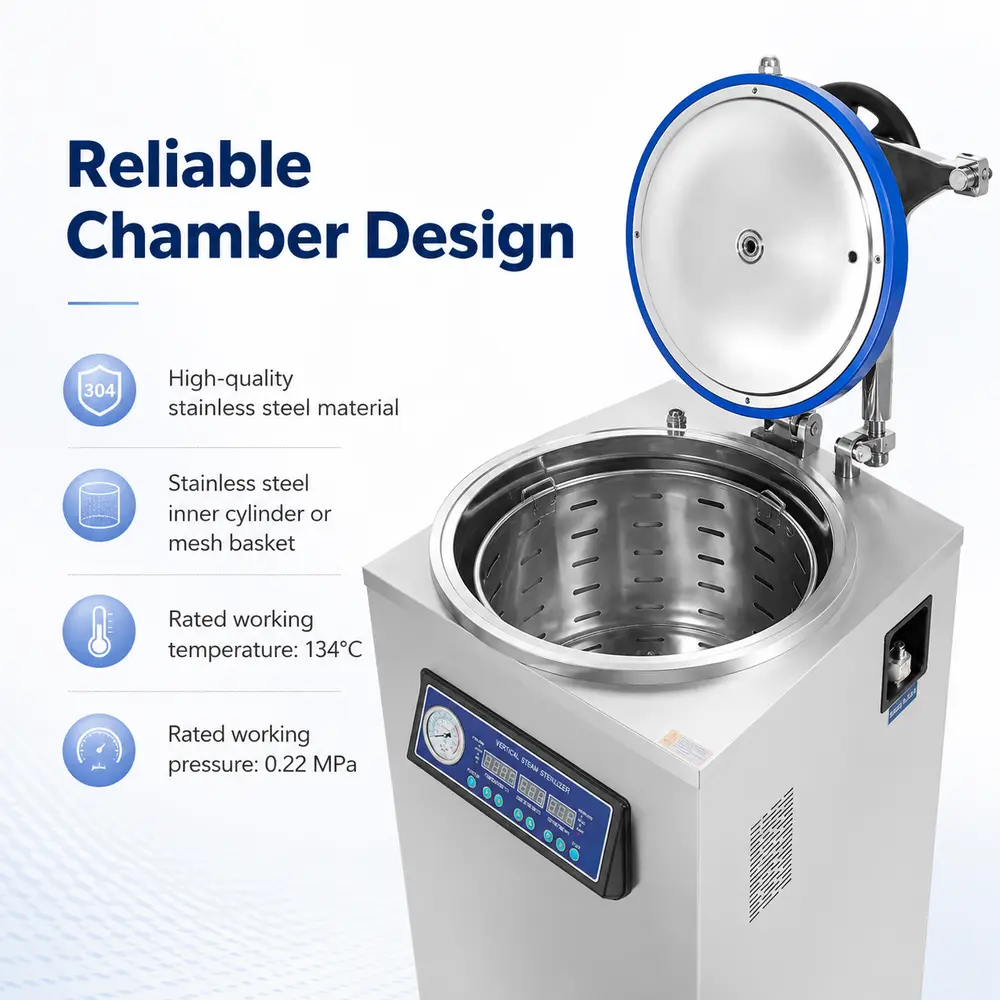

Construction & details
Get pricing for the KLL-G (With Drying)
Send your required model, voltage and destination port — you will receive a full quotation with packing and shipping details.
