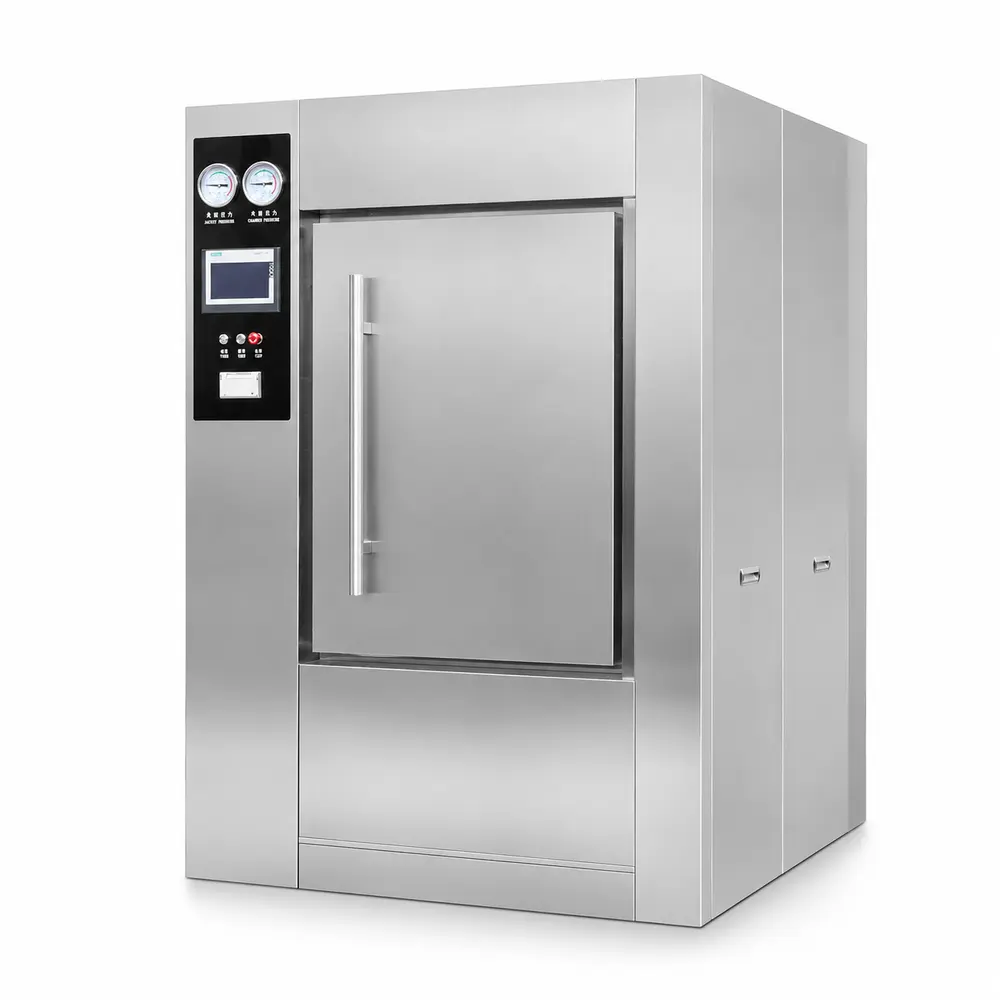

KL Series Horizontal Steam Sterilizer (CSSD)

At a glance: A CSSD-grade horizontal steam sterilizer with rectangular double-jacketed chamber, 150–1500 L, pneumatic door sealing with single- or interlocked double-door options, and PLC + HMI touch-screen control.

Chamber volumes: 150–1500 L
Models: KL-150DM/SM through KL-1500DM/SM (D = single door, S = double door, M = pulsating vacuum)
Certification: CE · ISO 9001 · ISO 13485
Manufacturer: Keling Medical, China (since 1996)

Request a Quote WhatsApp Email

Overview

Engineered for hospital Central Sterile Supply Departments, the KL Series CSSD sterilizer pairs a horizontal rectangular double-layer chamber with a toothed, motor-locked door mechanism for reliability under continuous operation. Pneumatic door sealing supports single-door or double-door pass-through configurations, and the double-door version interlocks so the clean and contaminated sides can never be open at the same time.

Control is by PLC with an HMI touch screen, with three-level user authority management, ~9 adjustable vacuum pulsations and multiple sterilization programs for fabrics, instruments, liquids, B-D and pressure-holding tests. Sterilizers of 600 L and above use an external steam source; smaller models include a built-in evaporator. Loading cars and transfer carts are standard for 600 L+ chambers.

Product features

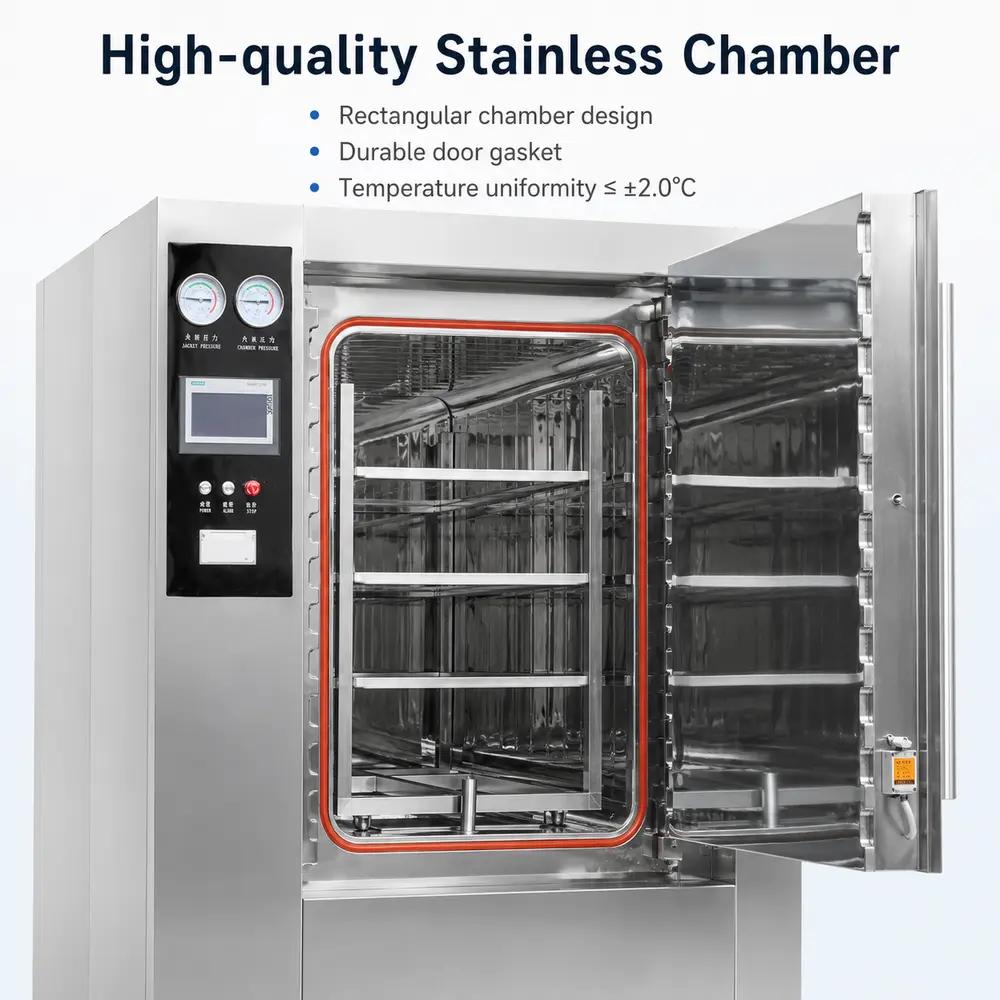

Horizontal rectangular double-layer structure, featuring safety, good heat preservation and drying effect
Toothed + motor-locking door structure, with low failure rate and high reliability
Door sealing is pneumatic, with options of single door or double door (double doors with interlock function)
Equipped with standard equipment verification interface
Optimized pipeline system, using high-quality stainless steel pipes and clamp-type quick-installation method

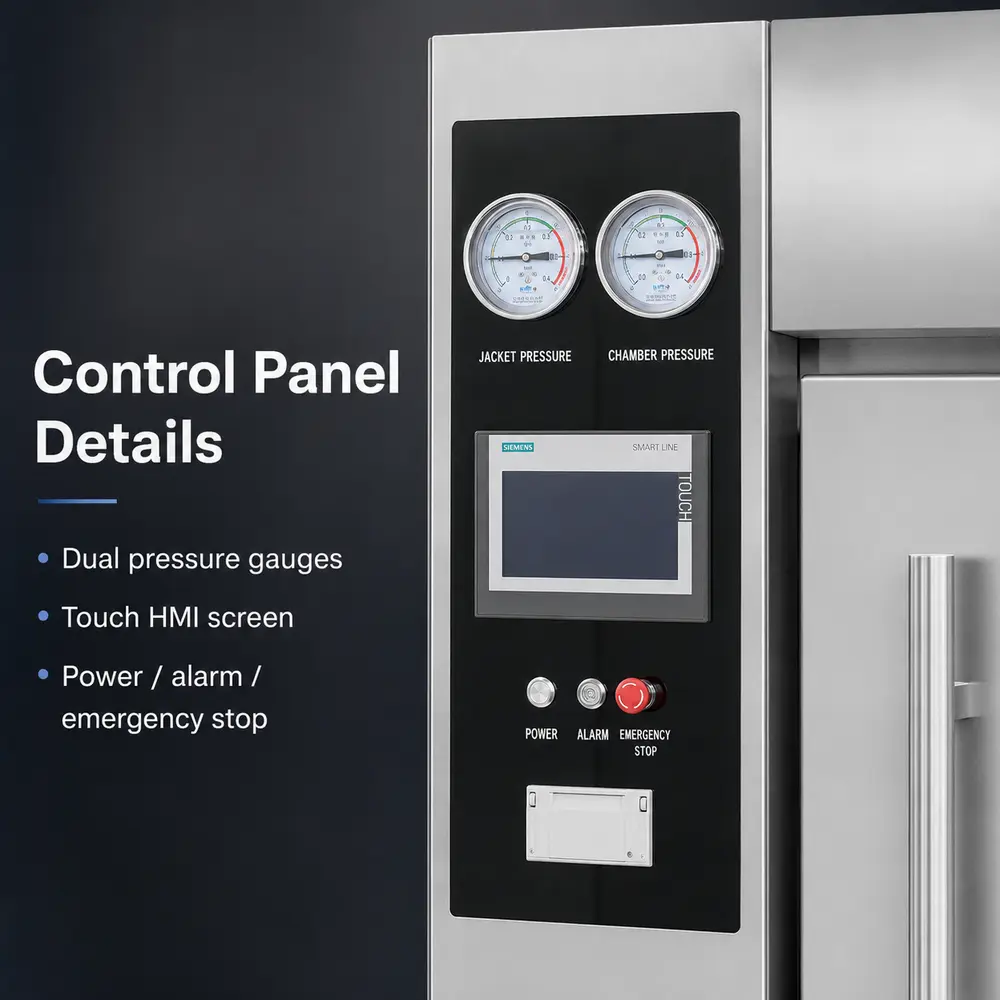

Control system: HMI (Human-Machine Interface) with touch screen + PLC
The sterilization effect is guaranteed by both F value and temperature-time, with complete sterilization file records
Three-level authority management
Multiple safety protection measures
Number of pulsations: ~9 times (adjustable)

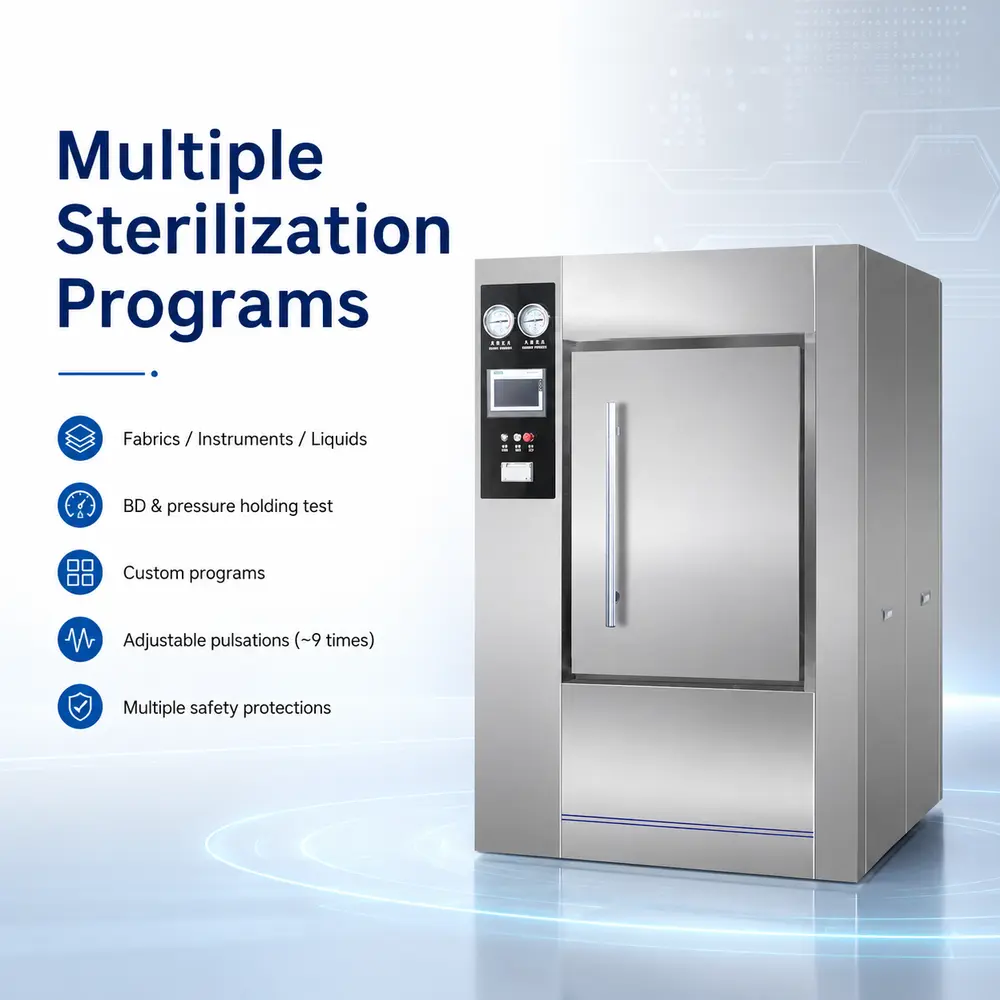

Sterilization processes: multiple programs for fabrics, instruments, liquids, BD, pressure holding test and customization

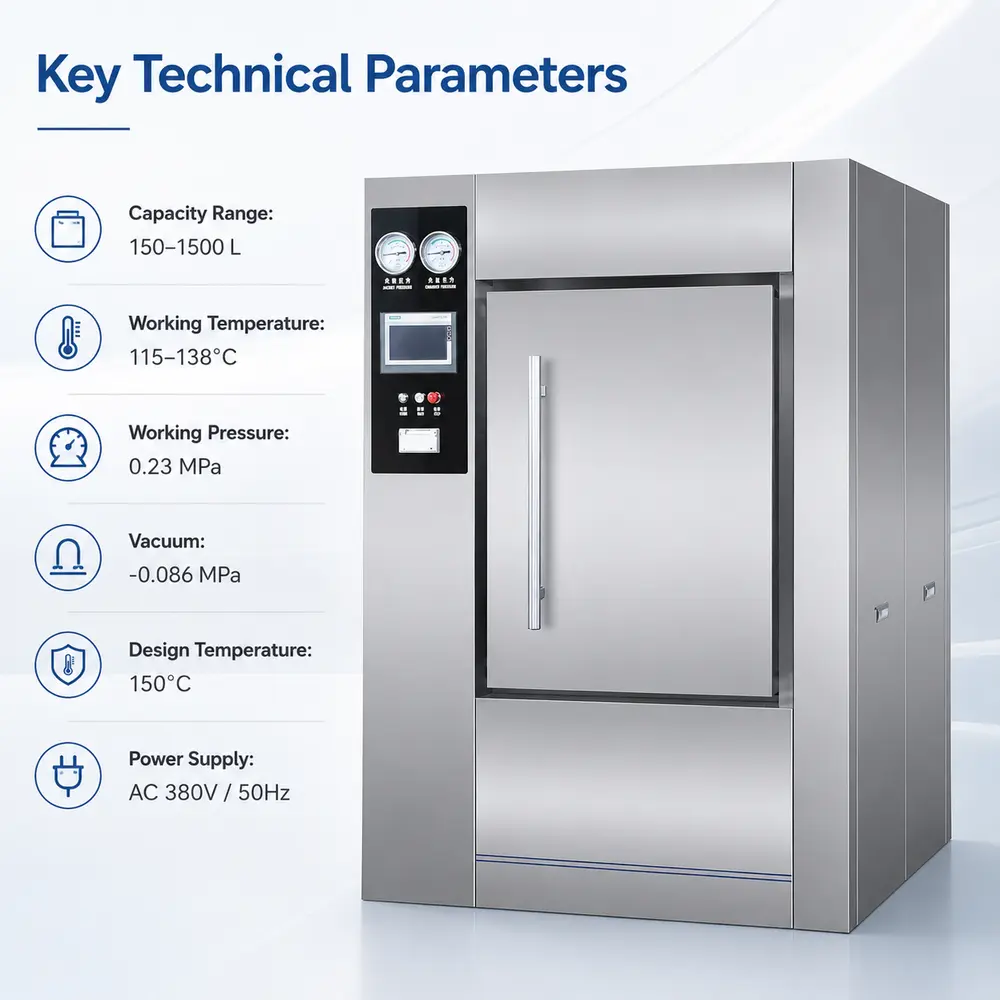

Technical parameters

KL Series Horizontal Steam Sterilizer (CSSD) — General technical parameters
Design pressure	-0.1-0.3MPa	Temperature uniformity	≤+2.0 °C
Design temperature	150 °C	Water source pressure	0.1~0.2MPa
Working pressure	0.23MPa	Compressed air pressure	0.4~0.7MPa
Working temperature	115-138 °C	External steam pressure	0.3~0.6MPa
Vacuum	-0.086MPa	Power supply voltage	Three-phase five-wire AC 380V 50Hz

KL Series Horizontal Steam Sterilizer (CSSD) — Model specifications
Model	Volume (L)	Overall Dimensions (LxWxH)(mm)	Chamber Dimensions (LxWxH)(mm)	Steam Consumption (kg)	Water Consumption (kg)	Power (KW)	Gross Weight (kg)	Net Weight (kg)
KL-150DM/KL-150SM	150	950x1120x1760	700x450x480	≤14	≤190	≤23	820/850	720/750
KL-200DM/KL-200SM	200	1175x1120x1760	925x450x480	≤16	≤190	≤23	890/920	770/800
KL-250DM/KL-250SM	250	1030x1300x1900	780x600x600	≤18	≤200	≤35	990/1020	840/870
KL-360DM/KL-360SM	360	1250x1300x1900	1000x600x600	≤25	≤200	≤35	1090/1130	910/950
KL-600DM/ KL-600SM	600	1440x1310x1900	1190x610x910	≤30	≤210	≤50	1440/1490	1240/1290
KL-800DM/KL-800SM	800	1700x1310x1900	1450x610x910	≤35	≤200	≤5.0	1590/1650	1405/1465
KL-1000DM/KL-1000SM	1000	1500x1440x1950	1250x680x1180	≤42	≤200	≤5.0	1680/1730	1550/1610
KL-1200DM/KL-1200SM	1200	1700x1440x1950	1450x680x1180	≤50	≤200	≤6.0	1870/1950	1650/1730
KL-1500DM/KL-1500SM	1500	2100x1440x1950	1850x680x1180	≤60	≤200	≤6.0	2180/2250	1900/1975
