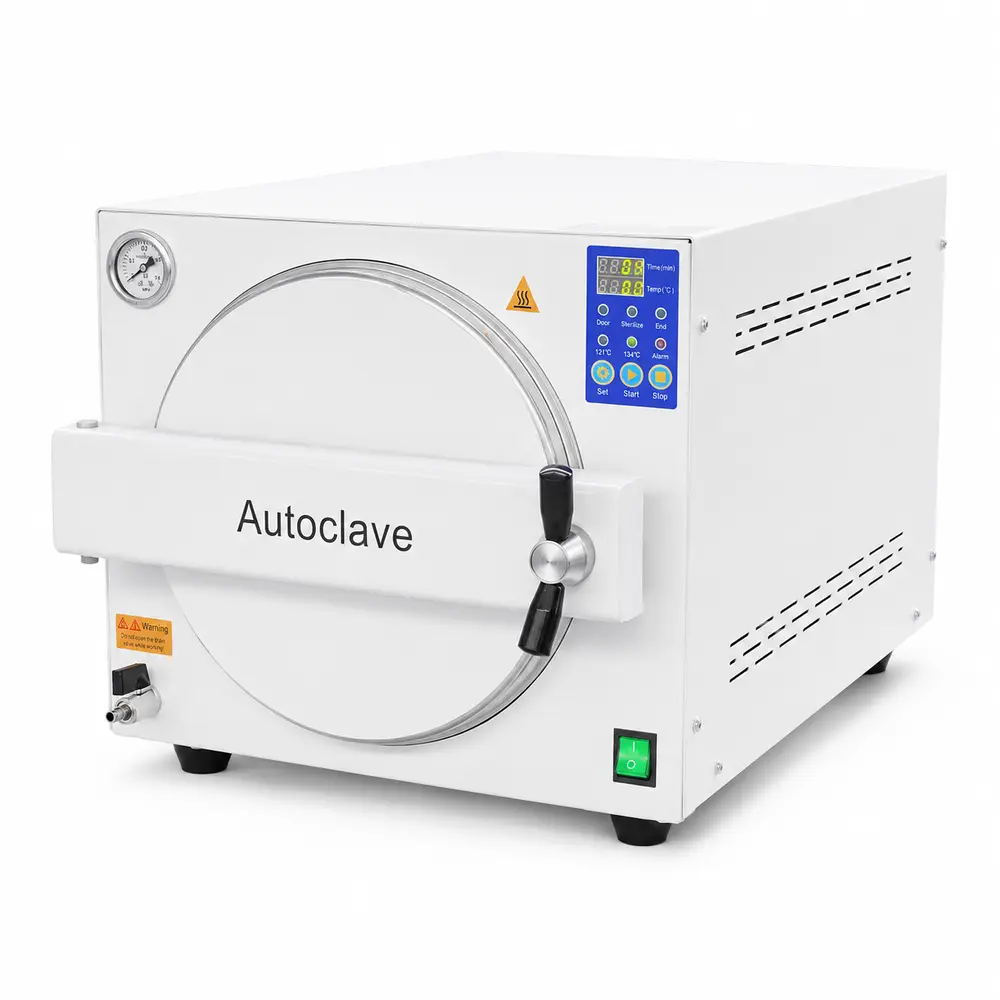

KLT-A Series Benchtop Autoclave (Class N)
At a glance: An economical European Class N benchtop autoclave in 18 L and 23 L sizes with selectable 121 °C / 134 °C programs, touch buttons and built-in steam generator, for solid unwrapped instruments.
- Chamber volumes
- 18 L / 23 L
- Models
- KLT-18A, KLT-23A
- Certification
- CE · ISO 9001 · ISO 13485
- Manufacturer
- Keling Medical, China (since 1996)
Overview
For clinics that sterilize solid, unwrapped instruments, the Class N KLT-A Series delivers dependable benchtop sterilization at an accessible price. Microcomputer control offers selectable 121 °C and 134 °C programs behind simple touch buttons, and a built-in steam generator supplies saturated steam quickly.
The stainless-steel chamber and sealing cover, standard test interface and four automatic protections (over-temperature, over-pressure, low water level, anti-dry heating) follow the same engineering standards as Keling's Class B machines — simplified, not cut down.
Product features
- High-quality stainless steel inner container and sealing cover

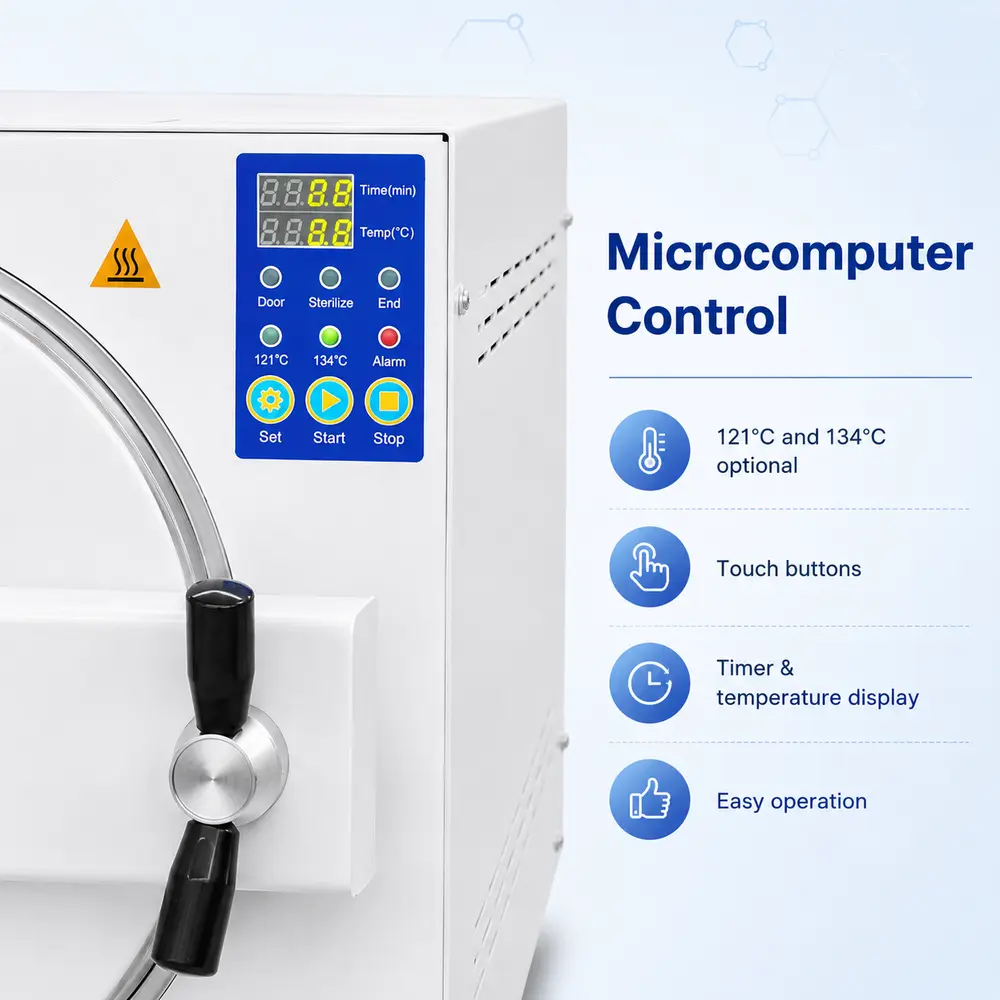

- Microcomputer control with optional settings of 121 °C and 134 °C
- Touch buttons
- Equipped with a standard test interface
- Built-in steam generator for rapid supply of saturated steam
- Automatic protection functions: over-temperature protection,over-pressure protection, low water level protection, anti-dry heating
- Simple operation, safe and reliable
- European Class N standard

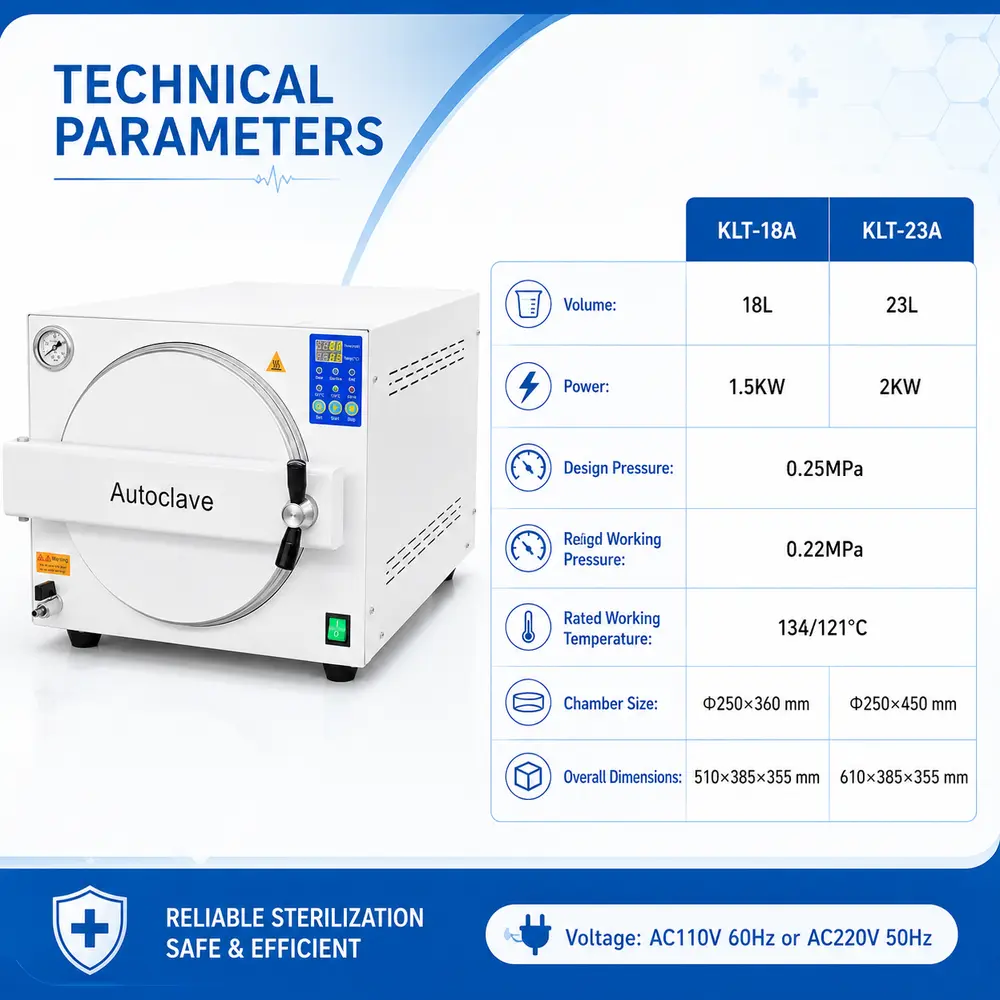

Technical parameters
| Technical Parameters/Model | KLT-18A | KLT-23A |
|---|---|---|
| Volume | 18L | 23L |
| Power | 1.5KW | 2KW |
| Voltage | AC 110V 60HZ or AC 220V 50HZ | |
| Design Pressure | 0.25MPa | |
| Design Temperature | 139 °C | |
| Rated Working Pressure | 0.22MPa | |
| Rated Working Temperature | 134/121 °C | |
| Chamber Size (mm) | Φ250x360 | Φ250x450 |
| Overall Dimensions (mm) | 510x385x355 | 610x385x355 |
| Packaging Dimensions (LxWxH) (mm) | 590x470x410 | 690x470x410 |
| Gross weight/Net weight | 29/24kg | 32/27kg |
Specifications are subject to technical improvement. Confirm final parameters, voltage and options with our sales team before ordering.

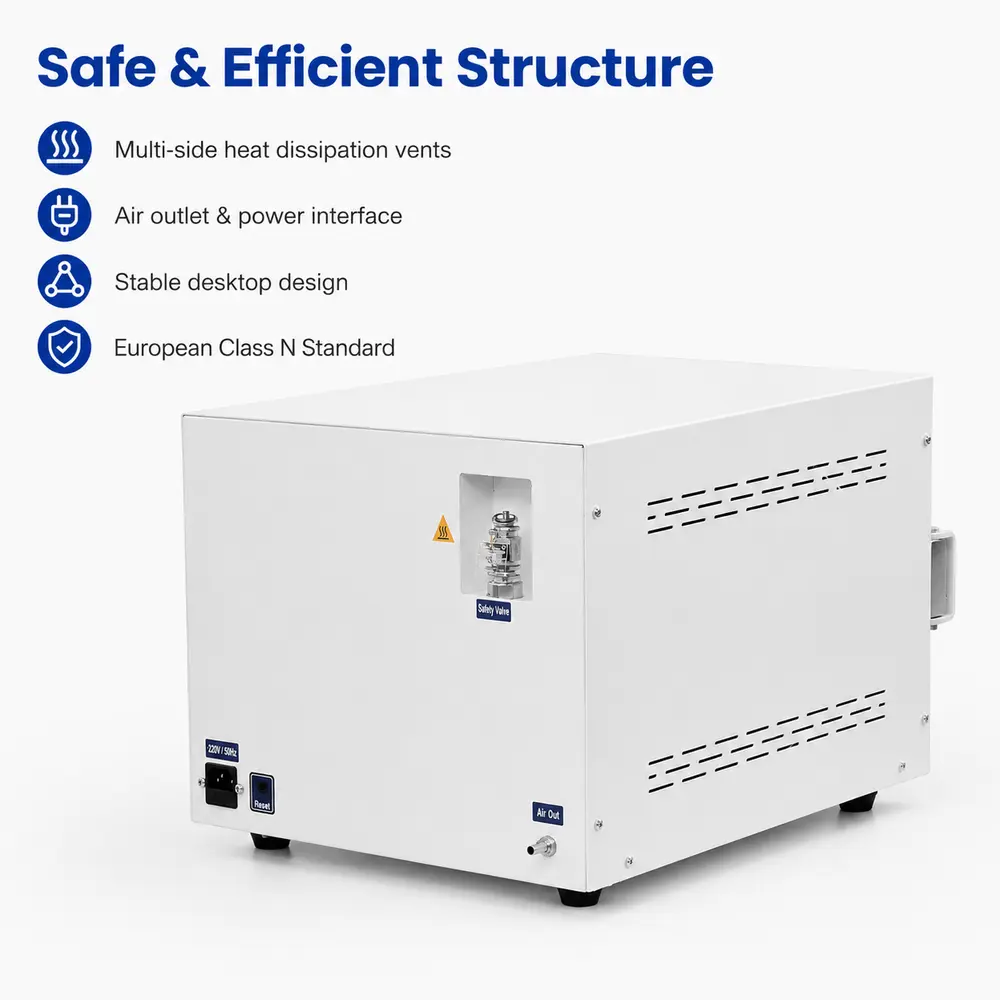

Construction & details
Get pricing for the KLT-A (Class N, 18–23 L)
Send your required model, voltage and destination port — you will receive a full quotation with packing and shipping details.
