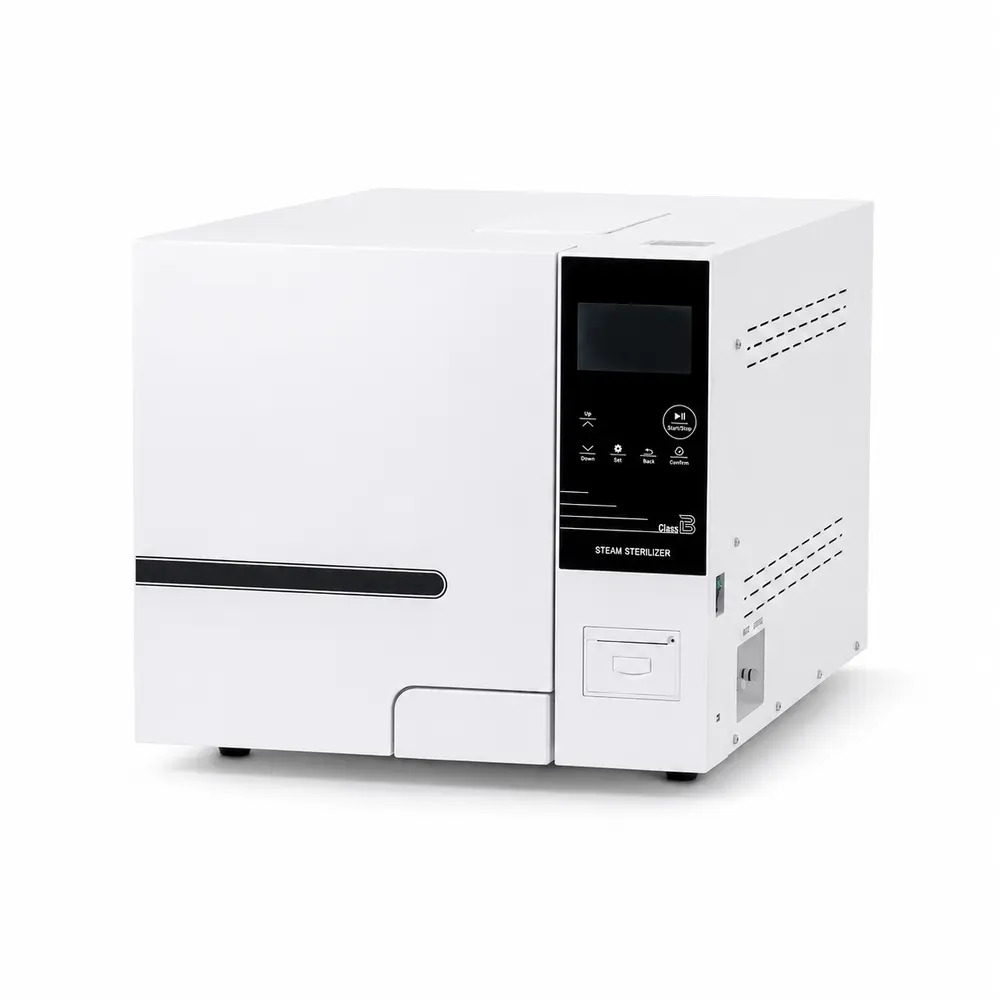

KLT-X Series Benchtop Autoclave (Class B, Pull-Down Door)
At a glance: A European Class B benchtop autoclave (18 L / 23 L) with a space-saving bottom-mounted pull-down door, three pulse vacuums, 4.3-inch color LED screen, built-in printer and USB.
- Chamber volumes
- 18 L / 23 L
- Models
- KLT-18X, KLT-23X
- Certification
- CE · ISO 9001 · ISO 13485
- Manufacturer
- Keling Medical, China (since 1996)
Overview
The KLT-X Series packs Class B performance — three pulsed vacuums for wrapped, hollow and porous loads — behind a distinctive bottom-mounted, manually pulled-down door that saves bench space and gives clear access for loading trays. A 4.3-inch full-color LED screen guides the operator through 9 preset and 3 test programs.
The built-in independent steam generator, electronic safety door interlock, automatic fault detection, high-altitude adaptive calibration, printer and USB port match its larger KLT siblings, in a footprint designed for compact clinics.
Product features
- European Class B standard, three pulse vacuums
- Bottom-mounted manually pulled door design
- 4.3-inch full-color LED screen

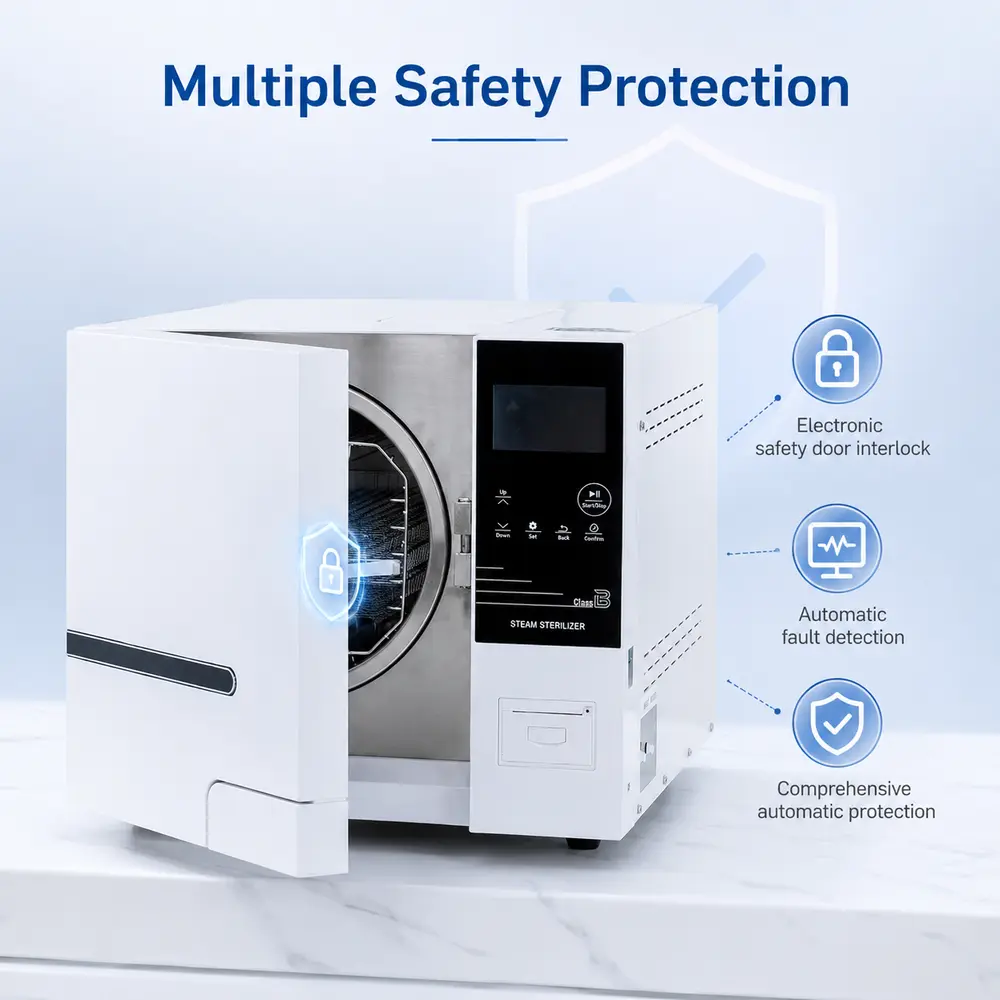

- Electronic safety door interlock
- High-quality stainless steel cavity and sealing cover
- Microcomputer control, full-process automatic control, and automatic fault detection
- High-altitude adaptive system to realize automatic atmospheric pressure calibration

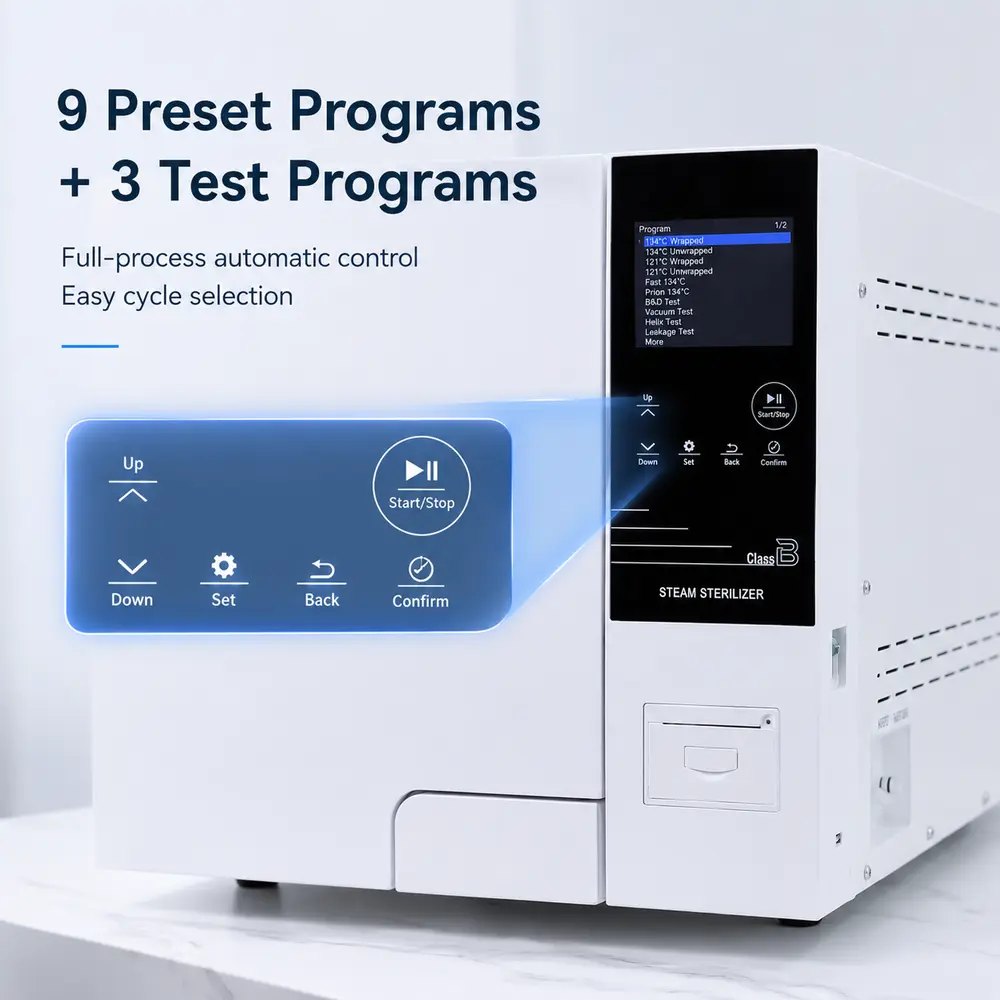

- 9 preset programs, 3 test programs
- Equipped with a standard test interface
- The machine features comprehensive automatic protection functions and a door-opening design

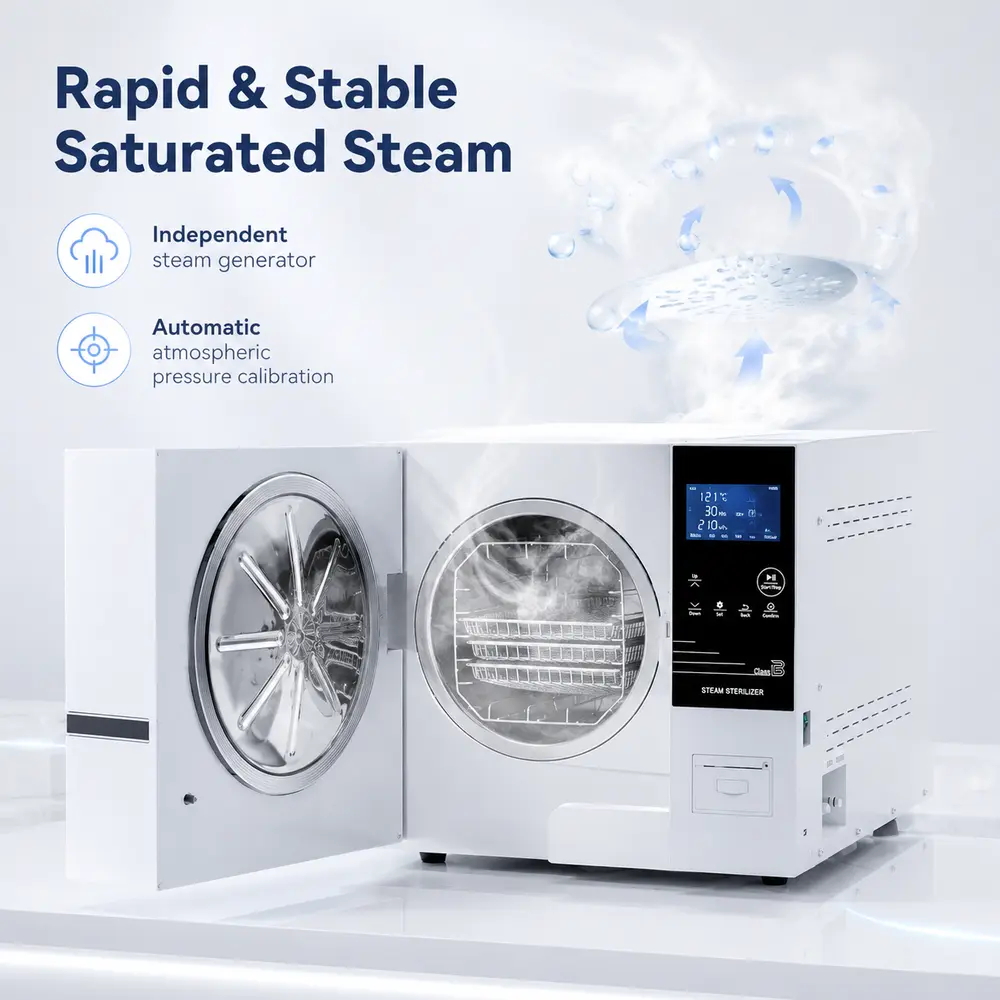

- Built-in high-efficiency independent steam generator for rapid and stable supply of saturated steam
- Built-in printer and USB function
- Optional water quality testing function

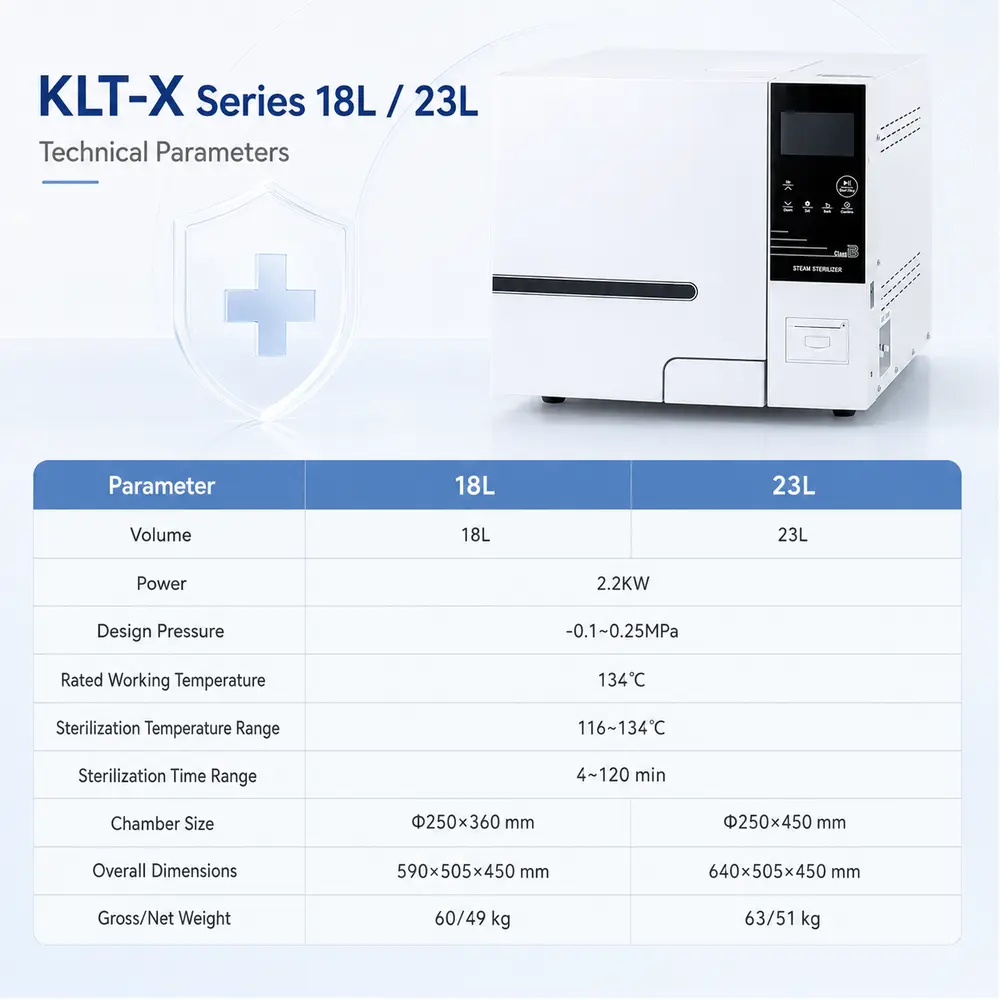

Technical parameters
| Technical Parameters/Model | KLT-18X | KLT-23X |
|---|---|---|
| Volume | 18L | 23L |
| Power | 2.2KW | 2.2KW |
| Voltage | AC 110V 60HZ or AC 220V 50HZ | |
| Design Pressure | -0.1~0.25MPa | |
| Design Temperature | 139 °C | |
| Rated Working Pressure | 0.22MPa | |
| Rated Working Temperature | 134 °C | |
| Sterilization Temperature Range | 116~134 °C | |
| Sterilization Time Range | 4~120 min | |
| Drying Time Range | 0~240 min | |
| Chamber Size (mm) | Φ250x360 | Φ250x450 |
| Overall Dimensions (mm) | 590x505x450 | 640x505x450 |
| Packaging Dimensions (LxWxH) (mm) | 710x560x510 | 750x560x510 |
| Gross/Net Weight | 60/49kg | 63/51kg |
Specifications are subject to technical improvement. Confirm final parameters, voltage and options with our sales team before ordering.
Construction & details
Get pricing for the KLT-X (Class B, 18–23 L)
Send your required model, voltage and destination port — you will receive a full quotation with packing and shipping details.
