KLT-Z Series Benchtop Autoclave (Class B, Touch Screen)
At a glance: A premium European Class B benchtop autoclave (18–50 L) with 4.7-inch color touch screen, automatic door opening/closing and 1–6 adjustable vacuum pulses, plus built-in printer and USB.
- Chamber volumes
- 18 / 23 / 45 / 50 L
- Models
- KLT-18Z, KLT-23Z, KLT-45Z, KLT-50Z
- Certification
- CE · ISO 9001 · ISO 13485
- Manufacturer
- Keling Medical, China (since 1996)
Overview
The KLT-Z Series is the flagship of Keling's benchtop line: a 4.7-inch full-color LED touch screen, automatic door opening and closing, and vacuum pulsation adjustable from 1 to 6 pulses to match any load type. Capacities run from 18 L up to a class-leading 50 L — enough for busy dental hospitals and clinic chains.
Compliance with European Class B standards means wrapped, hollow and porous instruments are all in scope. Five preset and three test programs, an emergency stop, comprehensive automatic protection, built-in steam generator, printer and USB logging complete a genuinely premium specification.
Product features
- 4.7-inch full-color LED touch screen
- Automatic door opening and closing structure
- Electronic safety door interlock
- High-quality stainless steel cavity and sealing cover
- Microcomputer control, full-process automatic control, and automatic fault detection
- High-altitude adaptive system to realize automatic atmospheric pressure calibration
- 5 preset programs and 3 test programs
- Equipped with a standard test interface
- Compliant with European Class B standards, with 1-6 adjustable pulse vacuums
- The machine is equipped with comprehensive automatic protection functions and an emergency stop
- Buzzer reminder upon completion of sterilization, with automatic shutdown
- Built-in high-efficiency independent steam generator for rapid and stable supply of saturated steam
- Built-in printer and USB function
- Optional water quality testing function
Technical parameters
| Technical Parameters/Model | KLT-18Z | KLT-23Z | KLT-45Z | KLT-50Z |
|---|---|---|---|---|
| Volume | 18L | 23L | 45L | 50L |
| Power | 2.2KW | 2.2KW | 3.5KW | 3.5KW |
| Voltage | AC 110V 60HZ or AC 220V 50HZ | |||
| Design Pressure | -0.1~0.25MPa | |||
| Design Temperature | 139 °C | |||
| Rated Working Pressure | 0.22MPa | |||
| Rated Working Temperature | 134 °C | |||
| Sterilization Temperature Range | 116~134 °C | |||
| Sterilization Time Range | 4~120 min | |||
| Drying Time Range | 0~240 min | |||
| Chamber Size (mm) | Φ250x360 | Φ250x450 | Φ320x615 | Φ320x665 |
| Overall Dimensions (mm) | 710x505x450 | 710x505x450 | 850x660x570 | 850x660x570 |
| Packaging Dimensions (LxWxH) (mm) | 790x590x520 | 790x590x520 | 980x770x720 | 980x770x720 |
| Gross/Net Weight | 65/53kg | 70/58kg | 127/102kg | 131/106kg |
Specifications are subject to technical improvement. Confirm final parameters, voltage and options with our sales team before ordering.

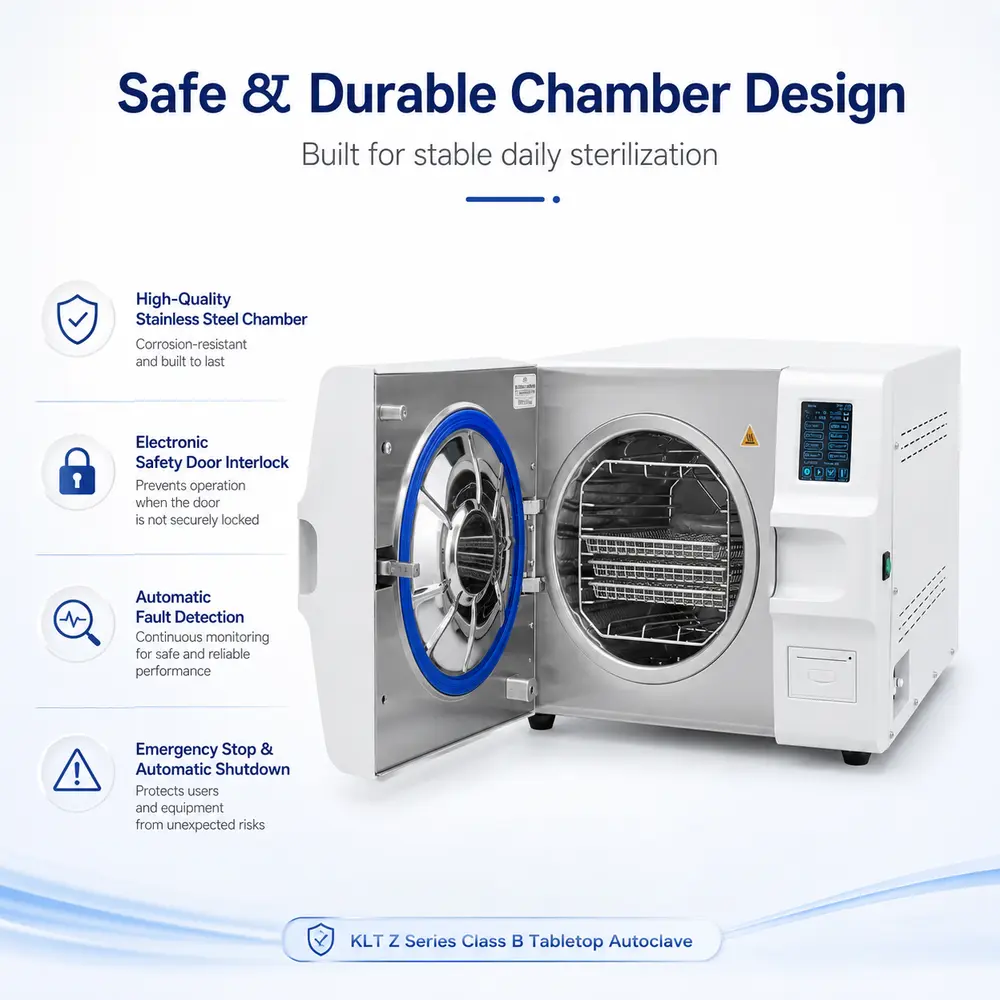

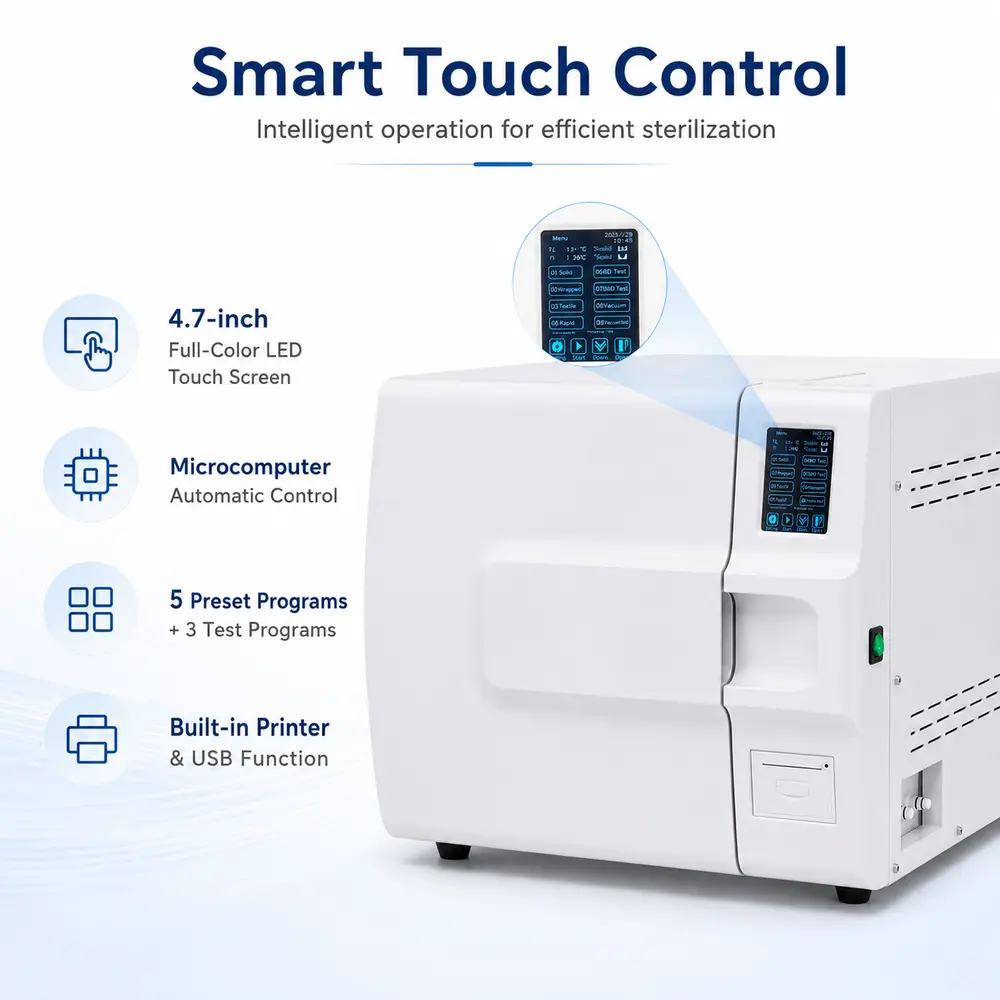

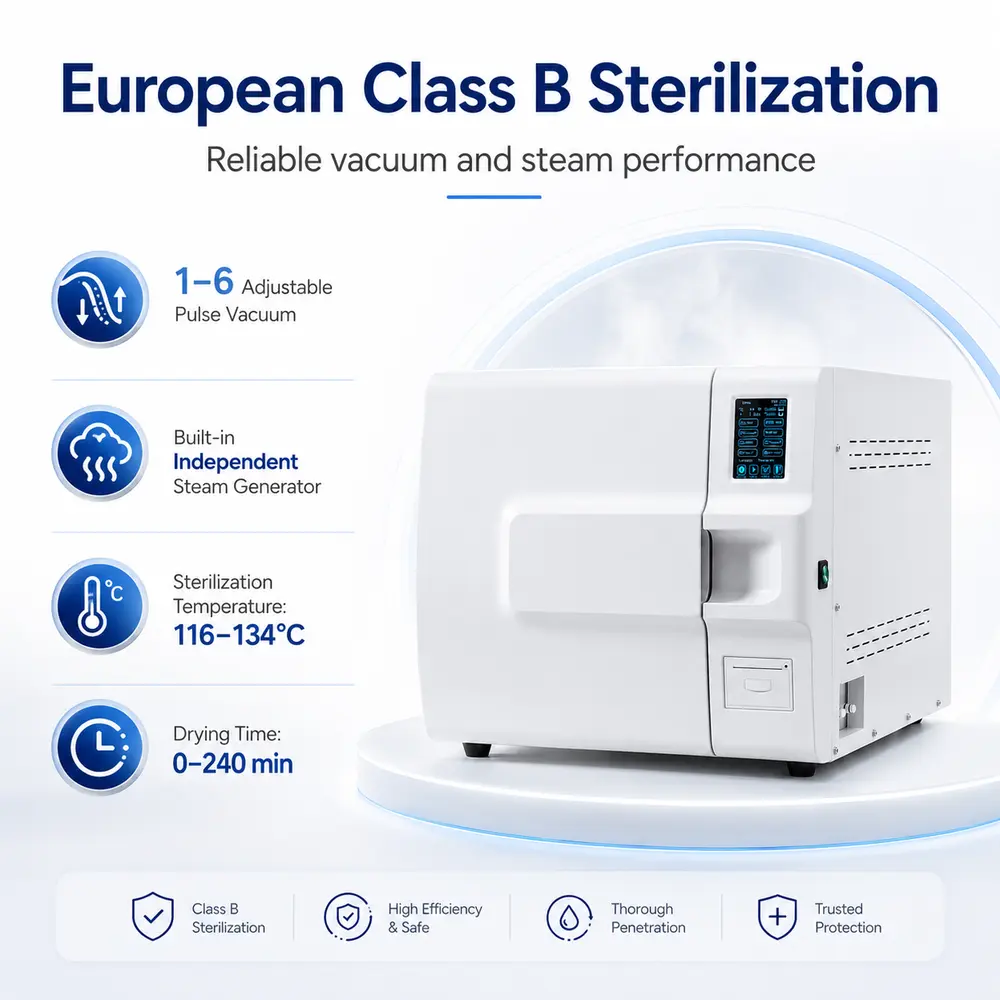

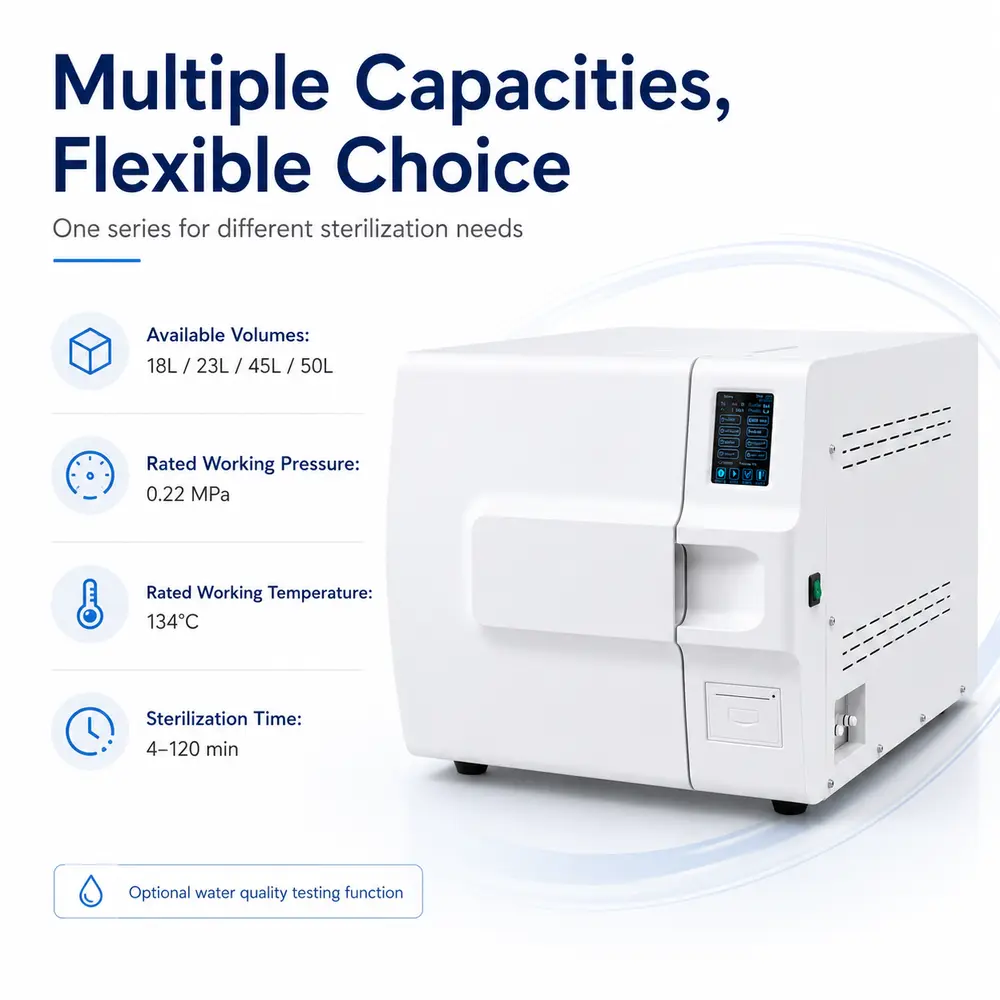

Construction & details
Get pricing for the KLT-Z (Class B, 18–50 L)
Send your required model, voltage and destination port — you will receive a full quotation with packing and shipping details.
