Benchtop Autoclaves (Class B & Class N)

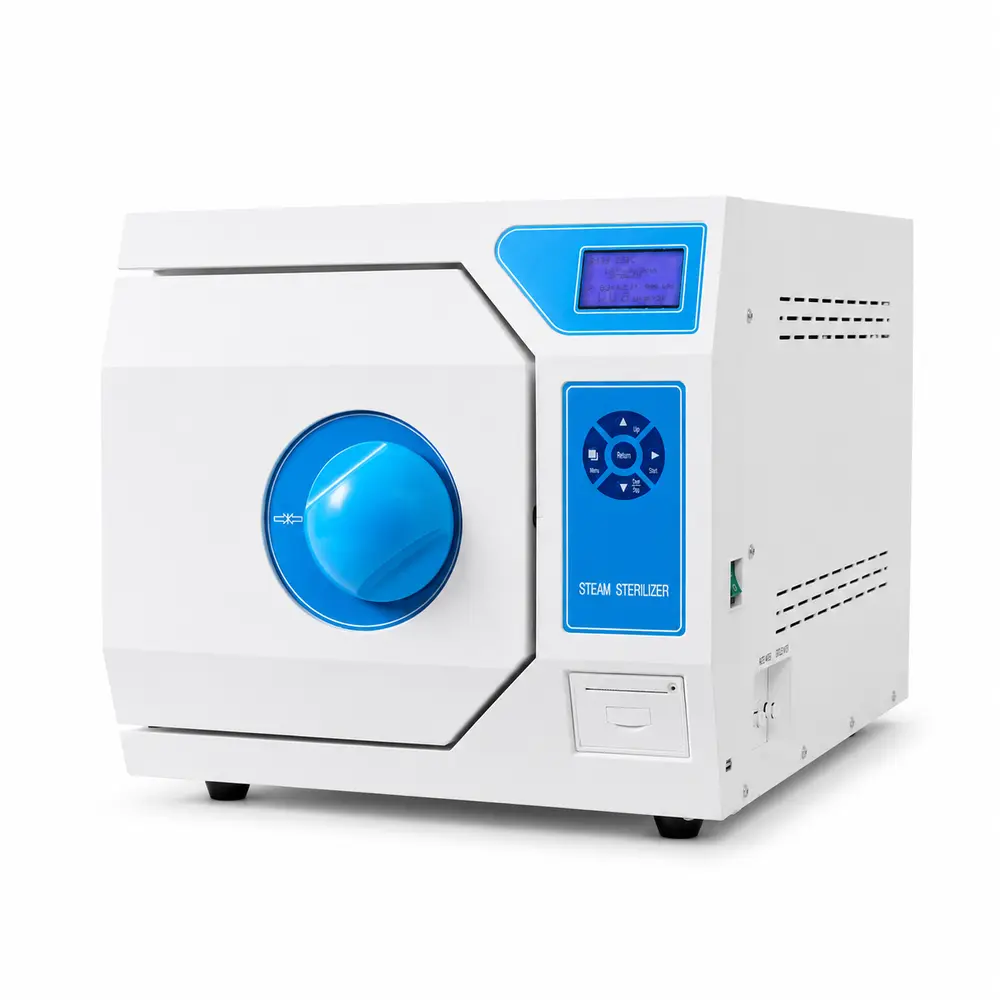

KLT-B Series Benchtop Autoclave (Class B)
At a glance: A European Class B benchtop autoclave in 8, 12, 18 and 23 L sizes with triple pulsed vacuum, LCD display, built-in independent steam generator, printer and USB data logging.
- Chamber volumes
- 8 / 12 / 18 / 23 L
- Models
- KLT-8B, KLT-12B, KLT-18B, KLT-23B
- Certification
- CE · ISO 9001 · ISO 13485
- Manufacturer
- Keling Medical, China (since 1996)
Overview
The KLT-B Series brings full European Class B sterilization — triple pulsed vacuum air removal capable of processing wrapped, hollow and porous loads — to a compact benchtop format starting at just 8 L. Nine preset programs plus three test programs (including B-D and vacuum tests) cover daily dental and clinic workflows out of the box.
A built-in high-efficiency independent steam generator delivers fast, stable saturated steam; cycles are documented via built-in printer and USB export. The electronic safety door interlock, automatic fault detection and high-altitude adaptive pressure calibration keep operation safe at any site.
Product features
- LCD Display
- Electronic Safety Door Interlock

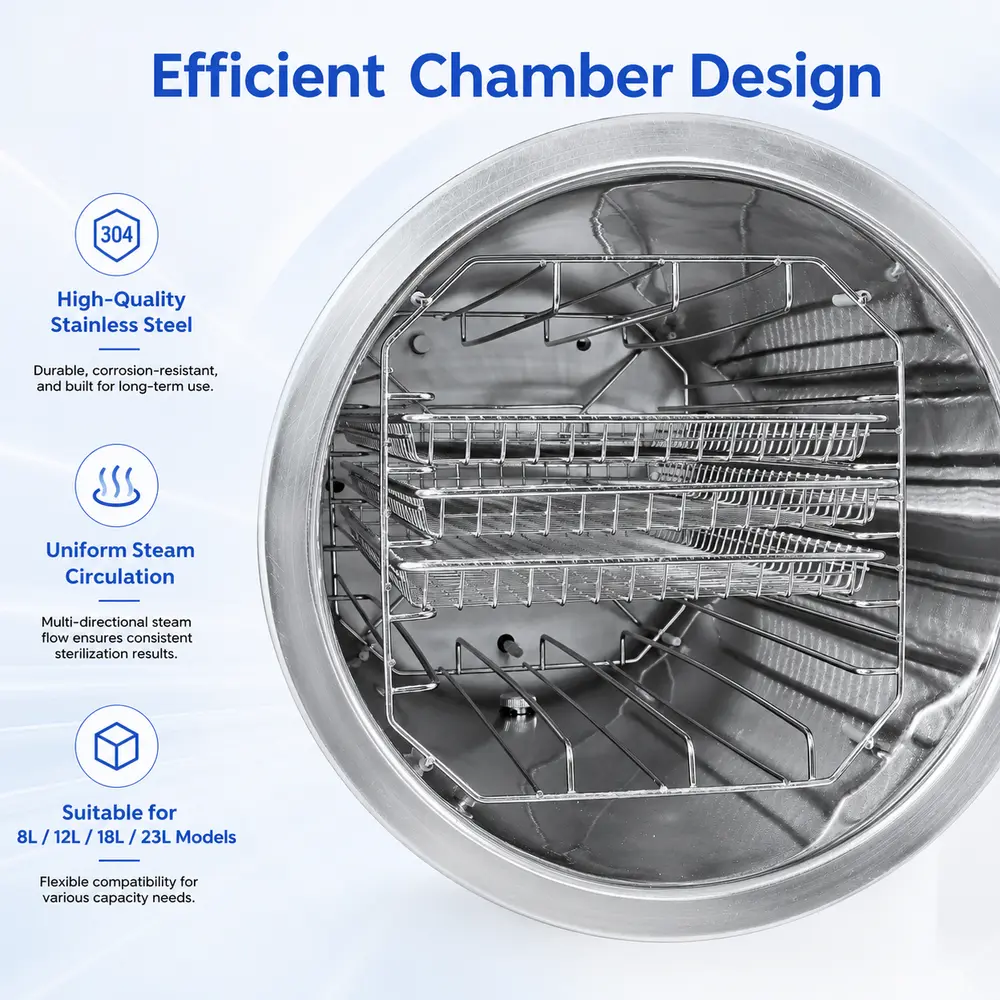

- High-quality Stainless Steel Chamber, Sealed Cover
- Microcomputer Control, Fully Automated Process Control
- Automatic Fault Detection
- High Altitude Adaptive System, Automatic Atmospheric Pressure Calibration
- 9 Preset Programs, 3 Test Programs
- Equipped with Standard Test Interface
- European Class B Standard, Triple Pulsed Vacuum
- Comprehensive Automatic Protection Functions for the Machine
- Built-in High-efficiency Independent Steam Generator, Quickly and Stably Provides Saturated Steam
- Built-in Printer, USB Function
- Optional Water Quality Testing Function

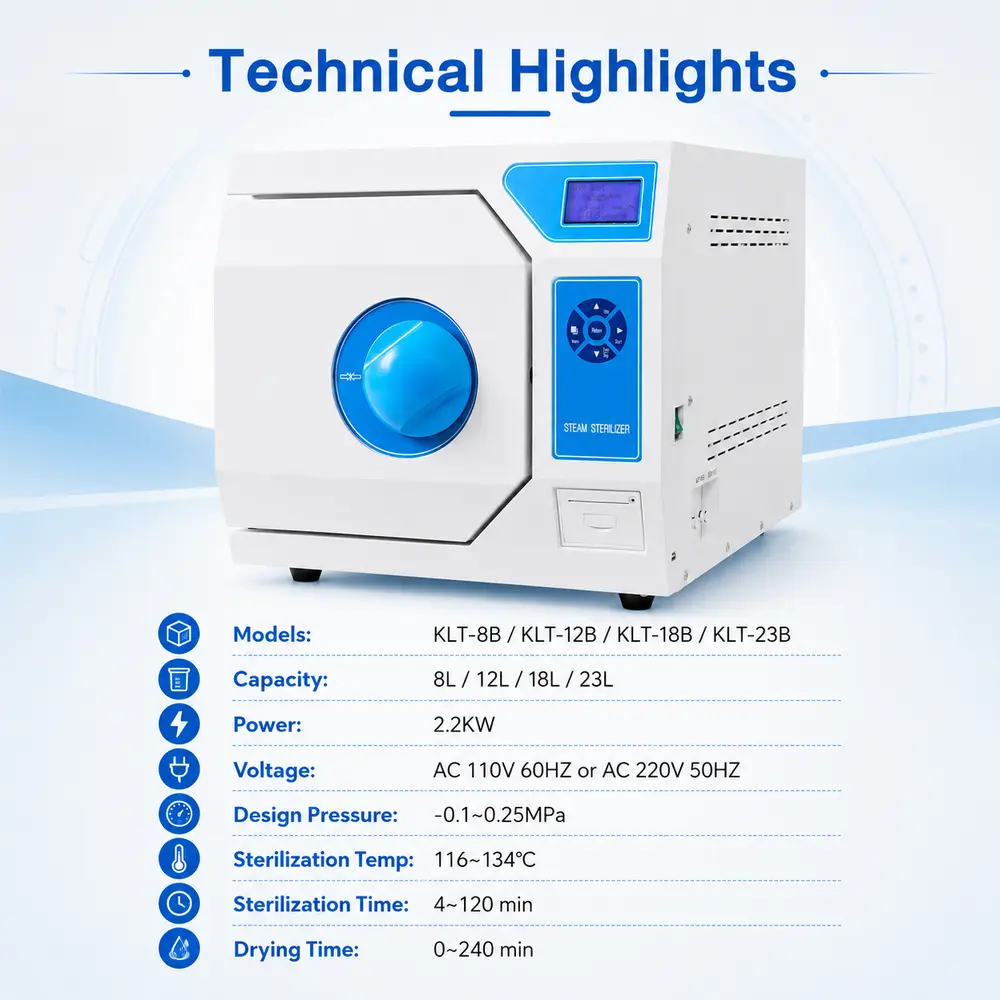

Technical parameters
| Technical Parameters/Model | KLT-8B | KLT-12B | KLT-18B | KLT-23B |
|---|---|---|---|---|
| Volume | 8L | 12L | 18L | 23L |
| Power | 2.2KW | 2.2KW | 2.2KW | 2.2KW |
| Voltage | AC 110V 60HZ or AC 220V 50HZ | |||
| Design pressure | -0.1~0.25MPa | |||
| Design temperature | 139 °C | |||
| Rated working pressure | 0.22MPa | |||
| Rated working temperature | 134 °C | |||
| Sterilization temperature range | 116~134 °C | |||
| Sterilization time range | 4~ 120 min | |||
| Drying time range | 0~240 min | |||
| Chamber Size(mm) | Φ170x320 | Φ200x355 | Φ250x360 | Φ250x470 |
| Overall dimensions (mm) | 445x580x400 | 445x580x400 | 600x475x445 | 680x475x445 |
| Packing dimensions (LxWxH)(mm) | 640x500x450 | 640x500x450 | 710x560x510 | 750x560x510 |
| Gross weight/Net weight | 49/40kg | 51/42kg | 60/49kg | 63/51kg |
Specifications are subject to technical improvement. Confirm final parameters, voltage and options with our sales team before ordering.

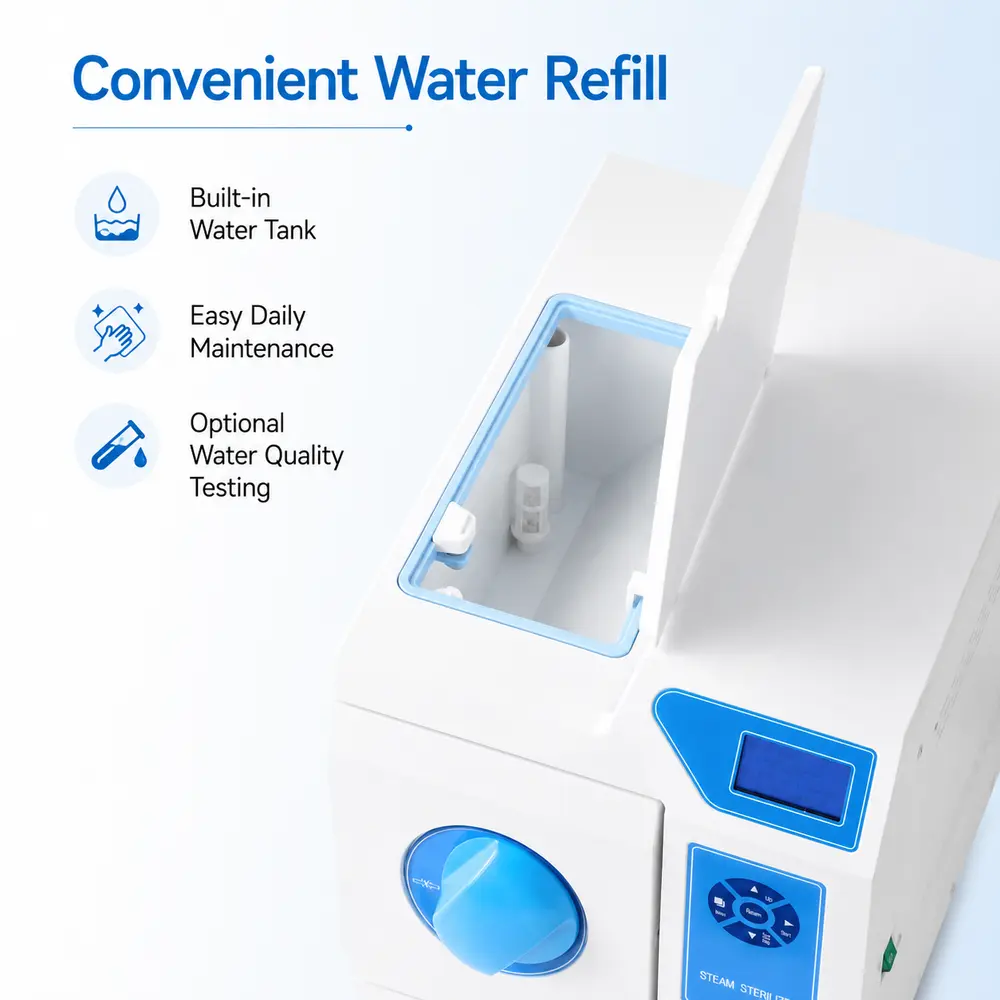

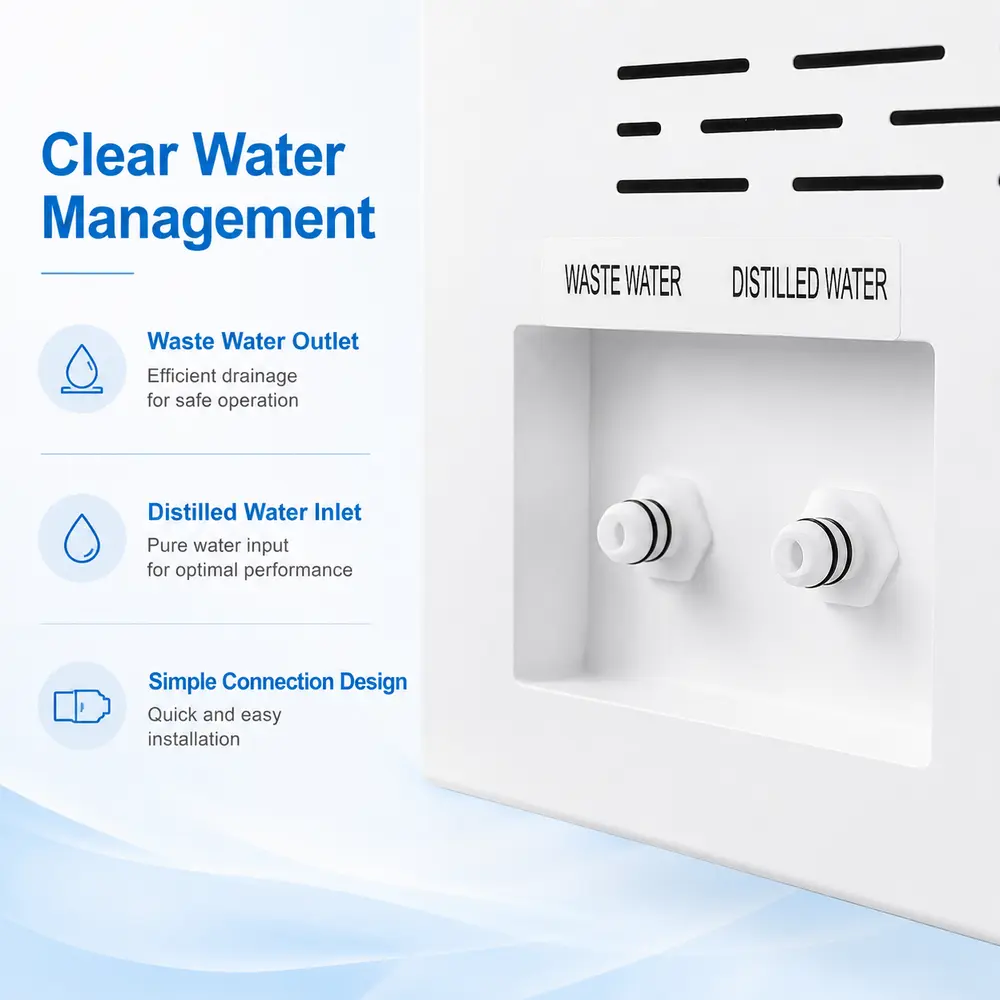

Construction & details
Get pricing for the KLT-B (Class B, 8–23 L)
Send your required model, voltage and destination port — you will receive a full quotation with packing and shipping details.
